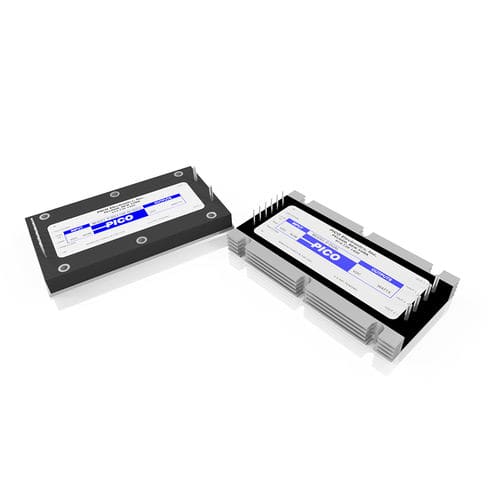

SMD DC/DC converter module PA series

regulatedinsulatedwide input range

The PICO PA Series of high power DC-DC Converters, allow a wide input voltage of 18-36 VDC, while maintaining a regulated output. They are fully safeguarded for over voltage, over temperature and continuous short circuit protection. The availability of Dual Isolated Outputs, small size, and the capability of parallel operations as standard features should reduce your design and component costs, while the fixed frequency operation helps parallel connections for higher power requirements. This high density unit is assembled in the USA with PICO quality and component selection, allowing it to meet the most stringent commercial requirements. Features: Input voltage protection Thermal, over temp. shutdown Line regulation Load regulation No external components required Hi density, hi efficiency design Remote shutdown Trim capabilities Fixed frequency-100 Khtz Typical Characteristics: Frequency: 100 Khtz Base plate: Max. +85º C Operating temperature: See thermal chart, Min. 0º C ambient, Max. +85º C base plate temp. Test conditions: 25º C ambient Isolation Base Input: 2121 VDC Isolation Input Output: 4242 VDC Isolation Output to Base: 1000 VDC Storage temperature: -55º C to +105º C
