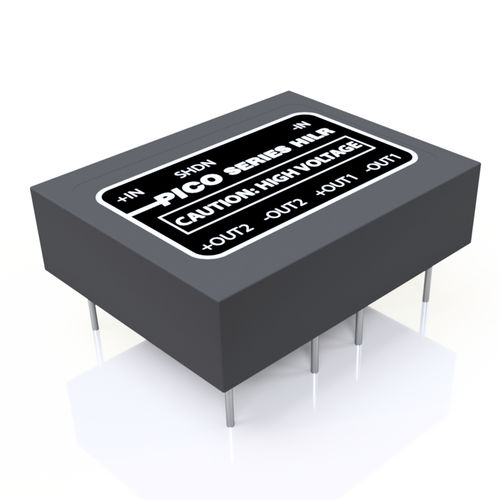

Encapsulated DC-DC converter HILR Series

regulatedindustrialsingle-output

The HILR series is an isolated DC-DC converter with wide and high input voltage range between 125 – 475 VDC, tight regulation, low ripple and low profile – 0.500″ height. These modules are fully protected from input over/undervoltage, output overcurrent, and over temperature. Shutdown feature, single and dual isolated output models are standard. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling. Features Down to 0.5% line regulation 1500V Input/output isolation Protected against input over/undervoltage, output overcurrent, and over temperature No heat sink or derating required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
