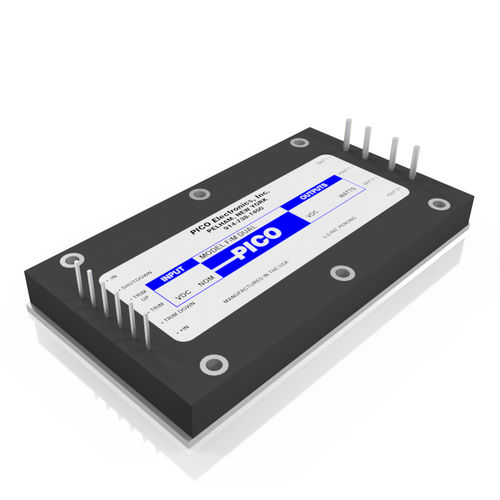

Regulated DC-DC converter F/M Series

2:1 input voltage rangeencapsulatedindustrial

The F/M series are isolated DC-DC converters with a wide selection of input voltage ranges from 18V to 380V in a low profile full brick size – 4.6″ x 2.5″ x 0.5″. These modules have trim capability and shutdown features. Protections include input overvoltage, output short-circuit, output overvoltage and over temperature. The unique case has integrated side heat sink for better thermal dissipation but is capable of conduction cooling through the baseplate or additional top mounted heat sink. Features Input/output isolation Parallel operation option Single and dual isolated outputs Trim capability Remote shutdown feature Fixed operating frequency No external components required Options Expanded operating temperature: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power Parallel Operation
