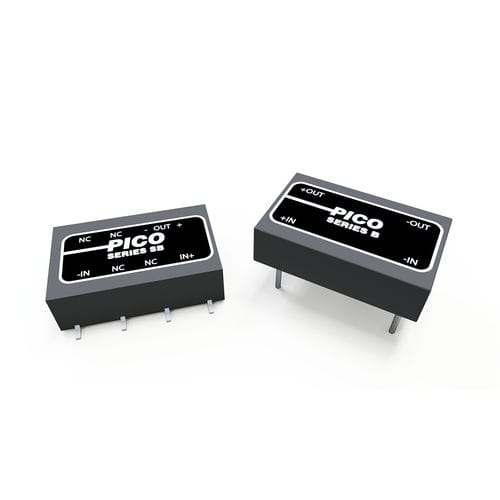

Encapsulated DC/DC converter 24SB12S
plug-inunregulatedsingle-output

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
encapsulated, plug-in
Electrical characteristics
unregulated
Other characteristics
single-output, dual-output, ultra-miniature
Input voltage

5 V, 12 V, 24 V, 48 V

Output voltage

Min.: 3.3 V

Max.: 48 V

Power

0.75 W, 1.25 W, 1.5 W, 2 W, 2.5 W

Description

This series of unregulated DC-DC converters comes in a miniaturized encapsulated package. 188 different models are available. The units feature single and isolated dual outputs. They will operate over the temperature range of -25º C to +70º C. No heat sink is required. Low Profile 0.3" Height! Up to 2.5 Watts No Heat Sink or Electrical Derating Required OPTIONS AVAILABLE Per Mil. Std. 883 Expanded operating temp. (-55º C to +85º C) Stabilization Bake (125º C ambient) Temperature Cycle (-55º C to +125º C) Hi Temp, full power burn in (100% power, 125º C case temp) FEATURES Up to 2.5 watt output at 70º C ambient Encapsulated semiconductors, conservatively rated for maximum reliability Ultra-miniature size (0.3" Height) 100 megohm @ 500V DC isolation Single and dual isolated output No heat sink required TYPICAL CHARACTERISTICS: Test conditions: 25º C ambient and input voltage at nominal value unless otherwise specified. LINE REGULATION: OUTPUT IS DIRECTLY PROPORTIONAL TO THE INPUT. Converter frequency: 20 - 40 KHz Output temperature coefficient: 0.02%/ºC Operating temperature: -25º C to +70º C ambient. No heat sink is required. Storage temperature: -55º C to +125º C Isolation: 100 megohms min. @ 500V DC Short circuit protection: Temporary
