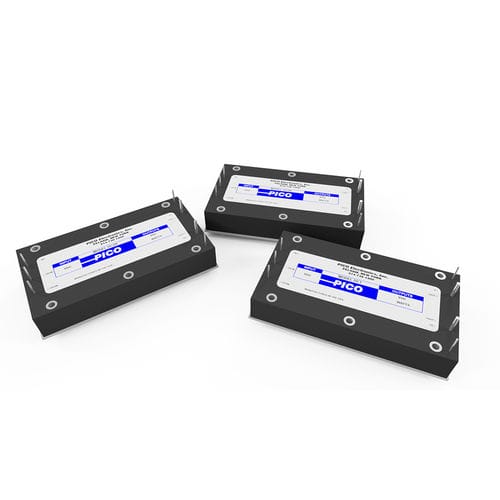

SMD DC/DC converter module DC1 series

step-downinsulatedregulated

HIGH POWER DC-DC CONVERTER Hi Input Voltage Range: 120 - 370 VDC Output Voltages: 5 VDC to 300 VDC Standard Hi Reliability Isolated Regulated Fixed Operating Frequency: 100Khz DC-DC Converter to 300 Watts INPUT VOLTAGE: 120 - 370 VDC (Input is reverse polarity protected.) Special Output Voltages Available: Consult Factory Regulated Output Voltage: 5 VDC to 300 VDC Standard Fully Encapsulated Made in USA TYPICAL FEATURES/ELECTRICAL CHARACTERISTICS Input Voltage: 120 - 370 Vdc Output Power: 150 to 300 watts (See Chart) Output Voltage Ripple: 75-500 mV (See Chart) Operating Temperature: 0°C to 85°C case temperature. See application notes for proper thermal considerations. Available with -20°C and -40°C operating temperature range - Consult Factory Isolation: From Input to DC Output: 4242 VDC From Input or DC Output to Case: 2121VDC Current Limit Setpoint: 130% of full load rating (Typical) Overtemperature Shutdown Operating Frequency: 100 Khz Fixed
