Encapsulated DC-DC converter DC3 & DC3-T Series

regulated3:1 input voltage rangehigh-power

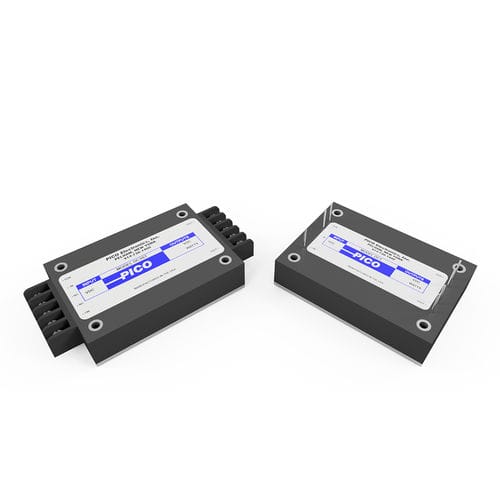

The DC3 & DC3-T series are isolated DC-DC converters with a wide 3:1 input voltage range of 300V to 900V and output power up to 50W. These modules have shutdown feature and continuous short-circuit protection. The compact size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink. Features Input/output isolation Sense feature Shutdown feature Short-circuit protection Through hole or terminal strip Fixed operating frequency No external components required Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
