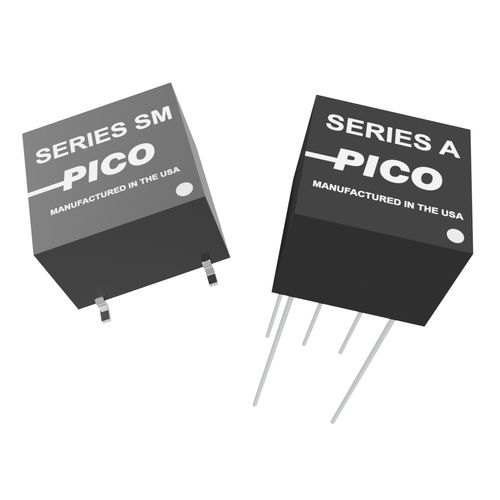

Encapsulated DC/DC converter 24SM24S

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


encapsulated, plug-in
Electrical characteristics
Other characteristics
single-output, insulated, dual-output, high-temperature, ultra-miniature
Input voltage

5 V, 12 V, 15 V, 24 V, 48 V

Output voltage

Min.: 3.3 V

Max.: 250 V


0.5 W, 0.63 W, 1 W, 1.25 W


This series of unregulated DC-DC converters are produced in an ultra-miniature encapsulated package. 178 different models are available. The units feature single and dual outputs. They will operate over the temperature range of -25º C to +70º C. No heat sink is required. FEATURES Up to 1.25 watt output at 70º C ambient Encapsulated semiconductors, conservatively rated for maximum reliability Ultra-miniature size (0.3" Height) 100 megohm @ 500V DC isolation Input/output isolation Single and dual output No heat sink required Up to 250V Output Options Available Per Mil Std. 883 Expanded operating temp (-55º C to +85º C) Stabilization Bake (125º C ambient) Temperature Cycle (-55º C to +125º C) Hi Temp, full power burn in (100% power, 125º C case temp) TYPICAL CHARACTERISTICS: Test conditions: 25º C ambient and input voltage at nominal value unless otherwise specified. LINE REGULATION: OUTPUT IS DIRECTLY PROPORTIONAL TO THE INPUT. Input voltage range: 5V models 4 to 6.5V DC 12V models 9 to 15V DC 24V models 17 to 28V DC 28V models 21 to 32V DC 48V models 25 to 50V DC Output Voltage Tolerance at Full Load: 5V models ± 0.25V 9V models ± 0.3V 12V & 15V models ± 0.4V 24V & 28V models ± 0.5V 48V models ± 0.7V 100V, 150V, 200V & 250V models ± 3.0V
