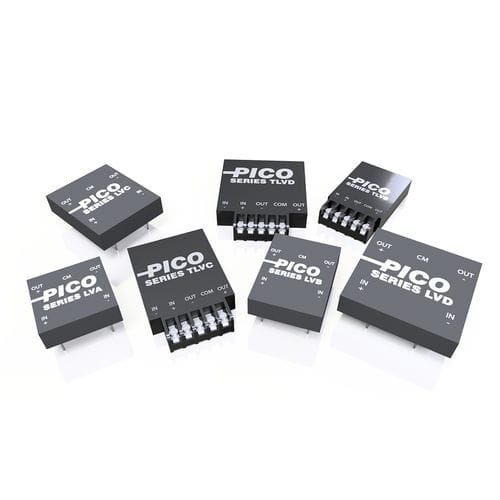

Regulated DC-DC converter LV & TLV Series

2:1 input voltage rangeencapsulatedindustrial

The LV & TLV series are regulated DC-DC converters with a wide 36 to 80V input range and low profile – 0.500″. Over 70 models are available in both single and dual outputs, through hole and terminal strip. They can operate over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling. Features Wide input voltage range – 36 to 80V Input/output isolation No heat sink or derating required No external components required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
