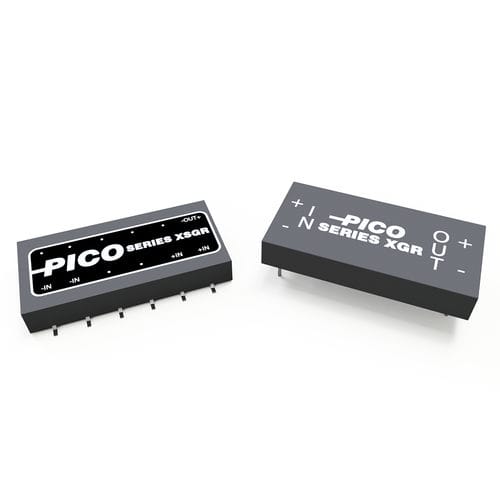

Encapsulated DC/DC converter 28XSGR15S
plug-inregulatedinsulated

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


Characteristics

Configuration
encapsulated, plug-in
Electrical characteristics
regulated
Other characteristics
single-output, insulated, dual-output, miniature
Input voltage

5 V, 12 V, 15 V, 24 V, 28 V

Output voltage

Min.: 2 V

Max.: 15 V

Power

Min.: 1.25 W

Max.: 4.5 W

Description

This series of encapsulated converters come in 100 different models. The units feature single and isolated dual outputs. They will operate over a temperature range of -25º C to +70º C. No heat sink is required. These units are excellent for applications where the input voltage varies ±10% and the output must be held to ±0.2%. The output voltage is maintained to within 0.5% from no load to full load. FEATURES Excellent load regulations ±0.5% Excellent line regulations 0.2% Up to 4.5 watts output power at 70º C ambient Low output ripple 100 megohm 500V DC isolation Single and dual isolated outputs No heat sink required Miniature size No output capacitor required OPTIONS AVAILABLE Per Mil. Std. 883 Expanded operating temp (-55º C to +85º C) Stabilization Bake (125º C ambient) Temperature Cycle (-55º C to +125º C) Hi Temp, full power burn in (100% power, 125º C case temp) TYPICAL CHARACTERISTICS FOR ALL MODELS: Test conditions: 25º C ambient. Output voltage tolerance: Single units 2 or 3 V outputs 3%, single units all others 1%, dual units ±2% Line regulations: ±0.2% (for the input voltage range of ±10%) Load regulation: 0.5% (from full load to no load) Converter frequency: 20-40K Hz Operating temperature: -25º C to +70º C ambient. Output voltage termperature coefficient: 0.005%/ºC Storage temperature: -55º C to +125º C Isolation: 100 megohms minimum at 500 volts DC Short circuit protection: Continuous
