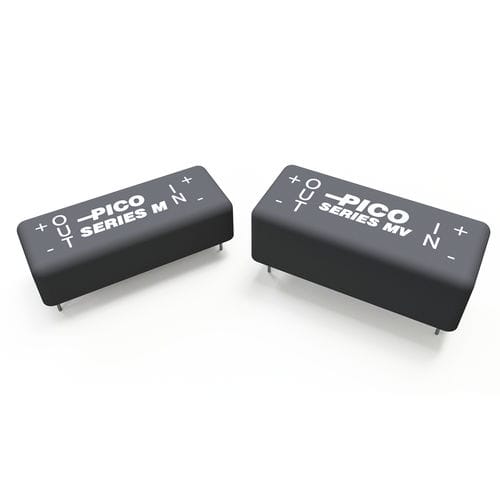

Encapsulated DC-DC converter M & MV Series

unregulatedindustrialsingle-output

The M & MV series are unregulated DC-DC converters with upgraded MIL screened / qualified components and expanded operating temperature range. The epoxy insulated shielded case is in an ultra-miniature encapsulated package – as small as 1.250″ x 0.500″ x 0.300″. Over 100 models are available in both single and dual isolated outputs as well as high output voltages – up to 500V. They can operate over the wide temperature range of -55°C to +85°C without derating, a heat sink or active cooling. Features JANTX Diodes MIL screened transformers, capacitors and resistors Hermetically sealed transistors Encapsulated semiconductors, conservatively rated for maximum reliability Ultra-miniature size – down to 0.300” height Output voltage is directly proportional to input voltage Five-sided or six-sided shielded case No heat sink or derating required Options Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power Tighter output voltage tolerances
