Encapsulated DC/DC converter OR series

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


encapsulated, plug-in
Electrical characteristics
Other characteristics
single-output, insulated, wide input range, dual-output, ultra-miniature
Input voltage

Min.: 5 V

Max.: 36 V

Output voltage

Min.: 3.3 V

Max.: 28 V


Min.: 0.75 W

Max.: 2.5 W

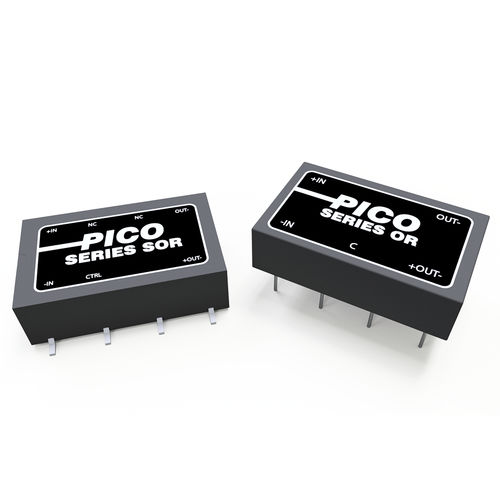

These Units Available for $30 in OEM Quantities This series of high efficiency wide input range, encapsulated regulators come in 84 different models. These units feature a 1,500 VOLT DC input to output isolation in both single and dual output models. The OR Series will operate over a temperature range from -25º C to +70º C with no heat sink or electrical derating. These units are excellent for applications where input voltage varies dramatically, yet a high efficiency and output voltage regulation must be maintained. FEATURES Encapsulated semiconductors, conservativly rated for maximum reliability Load regulation (see table for typical variation at different loads) Line regulation = Typical values 5-15V DC = ±1.5% 8-24V DC = ±1.5% 18-36V DC = ±1.0% High efficiency - up to 80% Will operate over a temperature range of -25º C to +70º C with no heat sink or electrical derating Isolation - 100 megohms at 1,500 Volts DC Single and dual isolated outputs Each unit is supplied with an external control pin. This "C" pin, when connected to the negative (-) input, will disable the unit, allowing for remote shutdown. TYPICAL CHARACTERISTICS: Test conditions: 25º C ambient. Operating temperature: -25º C to +70º C ambient. Output voltage tolerance: ±1% at typical input voltage Output voltage temperature coefficient: 0.02%/ºC Storage temperature: -55º C to +125º C Short circuit protection: Temporary Options Available Expanded Operating Temp. (-55º C to +85º C) Stabilization Bake (125º C ambient) Temperature Cycle (-55º C to +125º C) Hi Temp, Full Power Burn In (100% power, 125º C case temp.)
