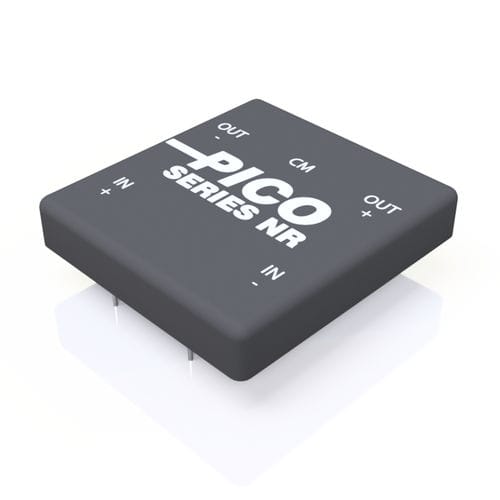

Encapsulated DC-DC converter NR Series

2:1 input voltage range3:1 input voltage rangeindustrial

The NR series is an isolated DC-DC converter with wide input range, tight regulation and six-sided shielded case. Single, dual and triple output models are standard. They can operate up to 30W over the temperature range of -25°C to +70°C without derating, a heat sink or active cooling. There are threaded inserts on the bottom to mount securely for high vibration and shock applications. Features Low profile – 0.500” height Six-sided shielded case Input/output isolation No external components required No heat sink or derating required Options Expanded operating temp: -55°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
