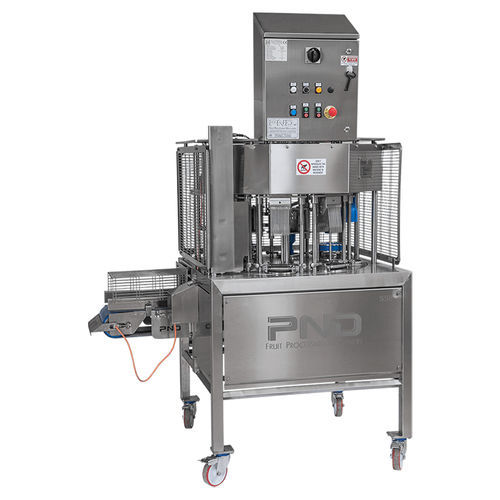

Semi-automatic coring machine SS series

for fruitfor vegetablesrugged

The universal segmenting and de-stemming machine SS2/SS8 is designed for de-stemming and cutting fruit and vegetables.
It is a semi-automatic machine that can cut apples, pears, oranges, kiwis, baby pineapples, baby melons, tomatoes, potatoes, carrots, eggplants, zucchinis, cucumbers, mushrooms, etc., into different shapes (slices, wedges, sticks) and sizes thanks to replaceable dies and pushers.
The operator only needs to load the product. The automatic mechanism has pushers that push the product through the dies, allowing cutting. The product is collected on the dedicated conveyor belt.
Advantages:
• High cutting quality
• Very robust machine structure
• Small footprint
• Simple and fast maintenance
• Easy to sanitize
• Electrical panel built to CEE/IP65 standards
• Optional: self-locking swivel castors
Equipped with: product discharge conveyor.
STICK CUT SIZES: • 10×10 mm • 12×12 mm • 15×15 mm • 20×20 mm
SLICES:
• Thickness from 5 mm to 12 mm
• Max. fruit diameter: 85 mm
• Max. fruit length: 100 mm
WEDGES:
• From 2 to 16 wedges, with or without de-stemming
• Max. fruit diameter: 110 mm
• Max. fruit length: 120 mm
