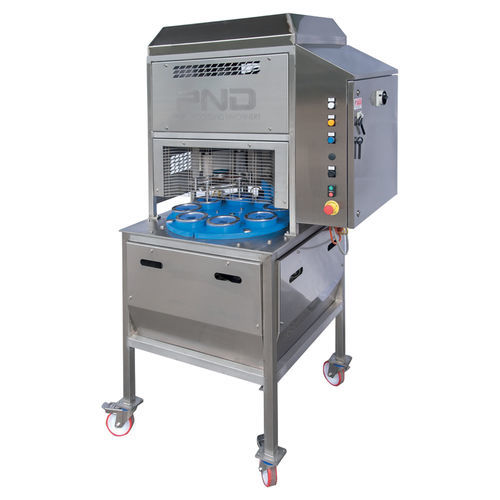

Fruit slicing machine DRR

applefor peachesautomatic

The machine can remove stems/cores and slice apples and peaches.
The frame is made of welded tubular sections and is on wheels (with brake) for easy movement. Adjustable feet can be supplied instead of wheels on request.
The machine consists of several synchronized mechanisms. The first is a rotating plate with 8 fruit stations that moves step-by-step, allowing the operator to load two fruits at a time into the seats.
The second mechanism is a structure that moves up and down by a pneumatic piston and drives the rotation of two de-stemming tubes via an electric motor. The de-stemming tubes are interchangeable as required.
Another mechanism, also driven up and down by a pneumatic piston, has pushers that push the fruit through membranes, placing them onto small steel shafts that support them.
The final step is slicing into rounds, located below the loading level: from the shafts the fruit moves by gravity into contact with the blades of a rotating plate and is sliced into rounds.
The loading plate indexes stepwise and at a speed chosen by the customer: when the plate stops the three work operations occur simultaneously — the operator loads the fruit and the two mechanisms perform de-stemming and cutting.
The machine is equipped with:
• Stainless-steel waste chute;
• Elevator belt for the cut product.
