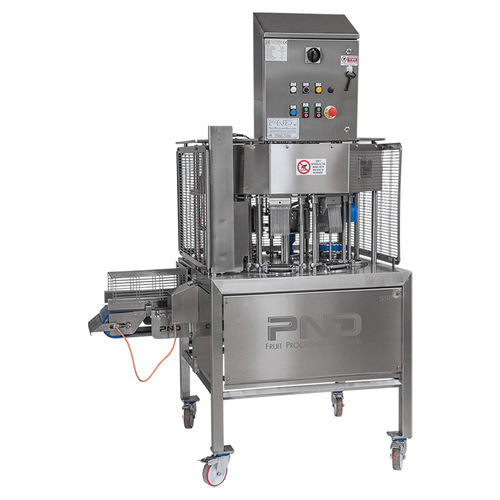

Pineapple fruit cutting machine SS8P

The slicer has been designed for cutting pineapples. It is a semi-automatic machine that allows cutting into wedges, rings, and cubes thanks to the possibility of replacing dies and pushers.
The operator only needs to load the peeled and cored pineapple into the die. The automatic mechanism is equipped with pushers that push the fruit through the dies, allowing it to be cut into wedges, rings, and cubes.
The product will be collected on the dedicated conveyor belt.


Possible cutting shapes:
Rings: min. thickness 10 mm
Wedges: 8-24 pieces
Cubes: min. thickness 20 mm


Technical Specifications:
Max. fruit diameter: 120 mm
Max. fruit height: 120 mm
