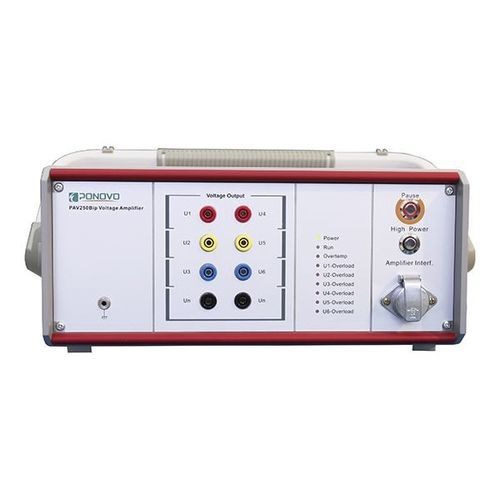

Power amplifier PAV250Bip

linearprecisionreal-time network simulator

PAV250Bip is the portable OPAL-RT used amplifier model, which is specially designed for R&D of power system simulation. It is designed with linear type amplifier so that it is with precise accuracy, which could be adapted to various capacitive and inductive load. There are 6 channels of voltage outputs with 2 options, 250V or 300V maximum output. It with high step response and time-delay accuracy,only 80us and high power output capability. PAV250Bip is the best choice for users who require power amplifiers to co-work with RTDS, OPAL-RT, etc for HIL or PHIL simulation application. Input signal 0~5V RMS(± 7.07/16Vpek) Voltage Accuracy <0.2%(5V-250V) Voltage Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 50V/V Harmonic Distortion Ratio ≤0.1% Linearity ≤0.2% Phase accuracy 0.2° Frequency range DC±1dB Power supply single phase 110V or 220V AC Chassis 3U
