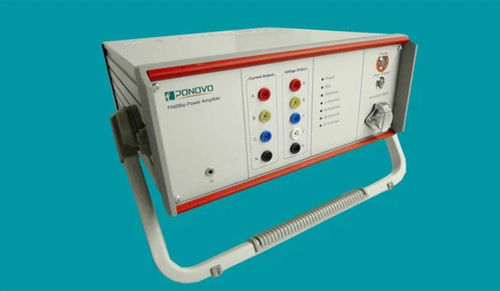

Power amplifier PA60Bip

differentialportablecurrent output

PA60Bip power amplifier power system is one of the conventional linear power amplifier models among PONOVO’s PA series portable power amplifier. It has three channels of current output and four channels of voltage output. Each current outputs is with 60A RMS. Each voltage outputs is with 120V RMS. With its stable performance, PA60Bip can be used for various power system simulation experiment. Current 3x0 ~60 A RMS Max. Output power 800VA(60A output) Input signal 0~5V RMS(± 7.07/16Vpek) Current Accuracy 0.2%(0.5A-60A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 12A/V Harmonic Distortion Ratio ≤0.2% Linearity ≤0.2% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Voltage 4×0 ~ 120V RMS Max. Output power 60VA(120V Output) Input signal 5V RMS(± 7.07/16Vpek) Voltage Accuracy 0.1%(5V-120V) Voltage Typical Accuracy < 0.05% Differential input impedance 20k ohm Gain 25V/V Power supply 1 phase 110V/220V AC 50/60 Hz Chassis 3U
