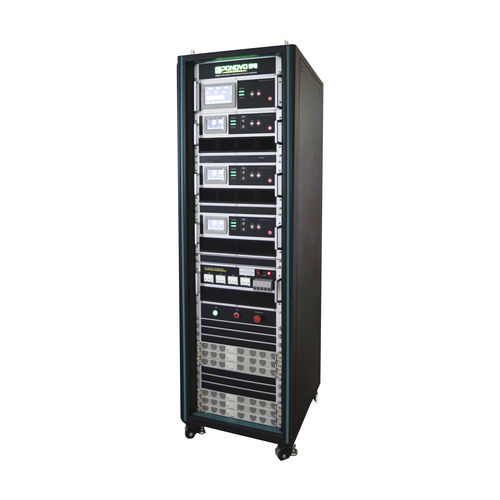

PAV3000 is one model among PONOVO’s PAV series four-quadrant power amplifier products.
PAV Series Four-quadrant Simulation Power Amplifier based on linear power amplifier technology and integrated advanced technical performance and rich functions.
It is vastly used by the institutes in the area of power, new energy, aerospace, rail transport, mining, petrochemical etc.
It is also the ideal R&D device of wind power, PV, electric car, large power charging device, aerospace power system, marine power system, distribute energy, micro grid etc.
It can directly connect to the popular simulation platform eg: RTDS,OPAL-RT,NI, Typhoon, etc, supporting not only analog input communication, but also digital interface communication via AURORA protocol.
PAV3000 is with 270V/3000VA rated output capability, high frequency range upto 5kHz ±1dB, high accuracy of slew rate and time-delay response time.
It could work as both source mode to output power and also sink power mode to do power absorption.
