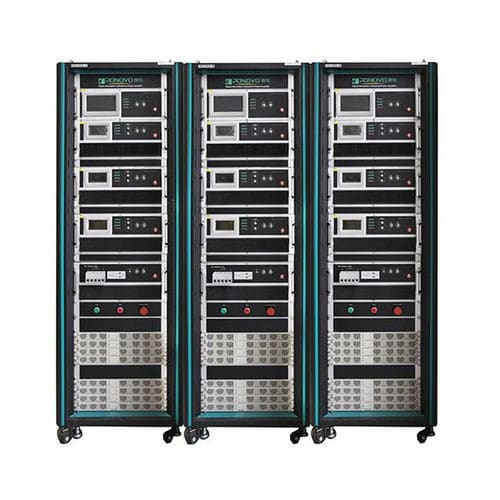

Power amplifier PAV15000

analoglinear

PAV Series phil 4-quadrant power amplifier is based on linear power amplifier technology and integrated advanced technical performance and rich functions. PAV10000 is one model of PAV series 4-Quadrant power amplifier. PAV15000 is composed of 4 sets of cabinets, the parameters are: 4×43U standard chassis; H×W×D(mm): 2100×650×900; Weight: 3×450kg and 1×280kg. Its output is 270VAC/15000VA (382VDC/15000W), this load time is continuous. Customers can choose the power unit according to their needs. Due to its reliable linear design principle, PAV15000, with very high power output capability, but still can reach very high time-delay and response time accuracy, and extremely low harmonic distortion and fast slew rate, etc. It can conduct power hardware in the loop testing. It could be used vastly in the following PHIL(Power-Hardware-in-Loop) application. It can directly connect to the popular simulation platform eg: RTDS, OPAL-RT, NI, Typhoon, etc, supporting not only analog input communication, but also digital interface communication via AURORA protocol.
