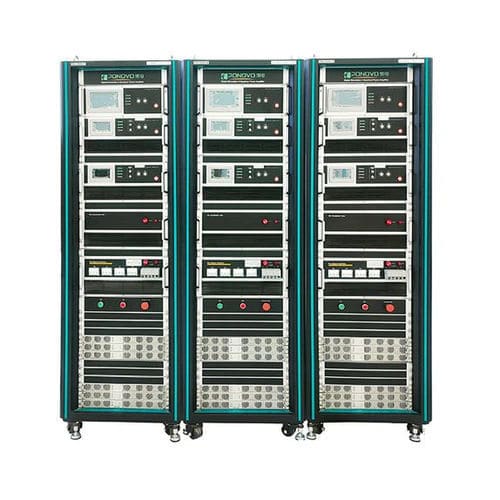

Power amplifier PAV10000

hybridanaloglinear

PAV Series Four-quadrant Simulation Power Amplifier based on linear power amplifier technology and integrated advanced technical performance and rich functions. PAV10000 is one model of PAV series 4-Quadrant power amplifier.which is composed of 3 sets of cabinets, the parameters are: 3×43U standard chassis; H×W×D(mm): 2100×650×900; Weight: 3×450kg. Its output is 270VAC/10000VA (382VDC/10000W), rated output. Due to its reliable linear design principle, PAV10000, with very high power output capability, but still can reach very high time-delay and response time accuracy, and extremely low harmonic distortion and fast slew rate, etc. It could be used vastly in the following PHIL(Power-Hardware-in-Loop) application. It can directly connect to the popular simulation platform eg: RTDS, OPAL-RT, NI, Typhoon, etc, supporting not only analog input communication, but also digital interface communication via AURORA protocol. And it has 2 word mode, which could work as both source mode to output power and also sink power mode to do power absorption. ● The distributed energy system such as photovoltaic power generation, wind generation, energy storage battery and fuel cell system etc ● The microgrid ● The electromobile and charge unit ● The energy storage ● Railway transportation Railway transportation The aerospace ● The electric system detection ● The hybrid simulation in power system HVDC ● FACTS ● HVDC and HV AC connection ● Dynamic load analysis on AC, etc.
