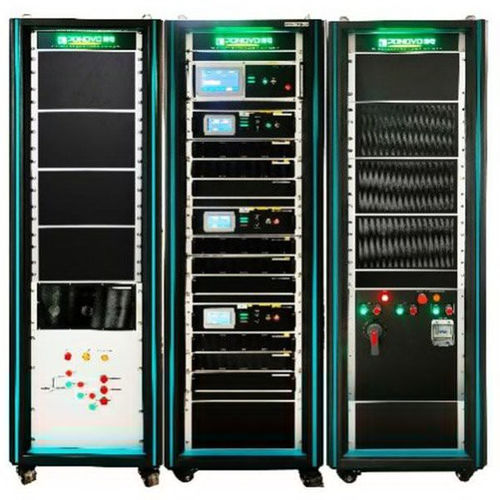

PHIL Grid simulator PAS series

PAS Series Switching-mode 4-Quadrant Power Amplifier (Hereinafter referred to as PAS Series) is the important equipment used for PHIL (Power Hardware in Loop) solution, which can be vastly used for different industry application, such as electrical power system testing, new energy, aerospace, railway transportation, PV, EV, microgrid, large power charging system, distribute energy, etc. PAS Series are equipped with independent four-quadrant digital power amplifiers that can be operated from DC up to 2kHz (small signal 15kHz) output voltage. PAS Series offers various AC, DC and Hardware-In-the-Loop (HIL) operation modes. PAS Series support analog and digital communication with simulator system. Digital interface support Aurora protocol communication. PAS Series support both source mode and sink mode (100%) and ability to feedback energy to the grid. With high power level, accuracy and slew rate, PAS Series could be used for various kinds of experiments by users for power simulation application.
