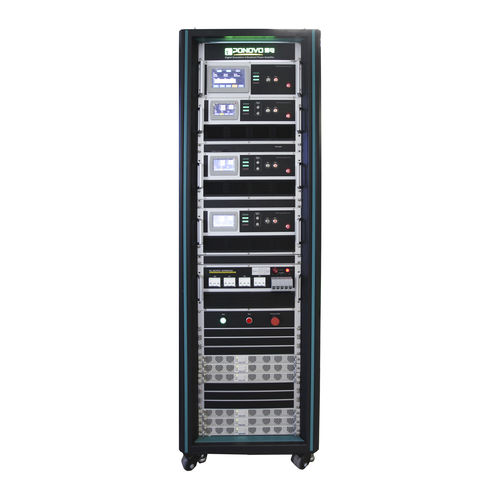

Power amplifier PAV5000

digitallinearprecision

PAV5000 is the four-quadrant amplifier with high power applied in the semi-physical simulation power platform to analyzer the sensitive load, the equipment power adaptability, and the electric vehicle, etc. and provide the technical support and service on the power quality. PAV5000, the phil 4-quadramt power amplifier rtds, is designed on basis of linearity with quick response, high accuracy and lower distortion. There are two types of test modes to meet different testing purposes. - Simulation control output Via the digital simulation system such as RTDS/OPAL-RT, it gives accurate dynamic simulation waveform signal to the amplifiers. The amplifiers output the high and accurate power to the simulation equipment to simulate the testing. It supports not only analog input communication, but also digital interface communication via AURORA protocol. - System control output The voltage can be output by user-defined with the amplitude, the phase and frequency. PAV5000 is composed of 1 set of cabinets, the parameters are: 1×43U standard chassis; H×W×D(mm): 2100×650×900; Weight: 1×450kg. Its output is 270VAC/5000VA (382VDC/5000W), this load time is continuous. It could work as both source mode to output power, used as a source unit and also sink power mode to do power absorption, used as a load unit. Customers can choose the power unit according to their needs.
