Power amplifier PA460Bi-H

analogdigitalportable

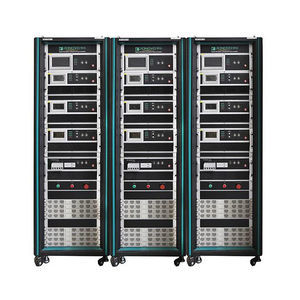

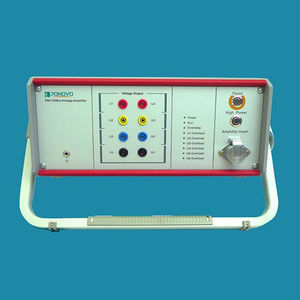

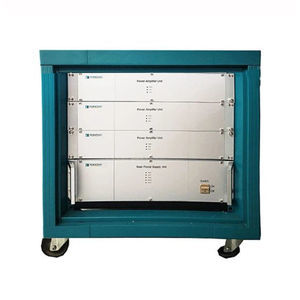

The digital real-time simulation technology is widely used in the power system. Different digital simulation system is developed such as RTDS, OPAL-RT, NI, Tynphoon, etc. But no matter how the digital simulation or digital-analog model simulation changes, the power amplifiers are one of the main roles in the simulation system which could work as a bridge between simulator and other equipment. PA460Bi-H power amplifier is specially designed for power electricity simulation and solves the high-power problem for linear power amplifier and accuracy problem for heavy current output. PA460Bi-H power amplifier has six-phase current output. Each phase maximally outputs 32A RMS and maximum output power of 450VA. There is six-phase voltage output. Each phase outputs 300V RMS and maximum output power of 45VA. It could be used as portable power amplifier itself and also could be possible to be installed in cabinet to compose comprehensive simulation system.
