Simulator for laboratory applications PA60Bi

frequencyprecisionPHIL Grid

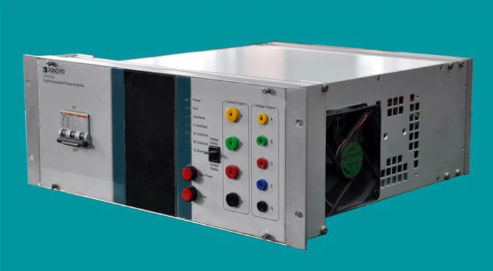

PA60Bi is the panel-mounted power amplifier, which can produce 3-phase current, with maximum RMS phase current of 60A and maximum output power of 800VA, and 4-phase voltage, with maximum RMS phase voltage of 120V and maximum output power of 60VA. It can conduct hardware in the loop testing and compose with other amplifier models to consist comprehensive simulation system to support simulator, like RTDS, OPAL-RT, NI,etc to finalize various simulation experiments. Input signal 0~7V RMS(± 10Vpek) Current Accuracy 0.2%(0.5A-60A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 8A/V Harmonic Distortion Ratio ≤0.2% Linearity ≤0.2% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Voltage 4×0 ~ 120V RMS Max. Output power 60VA(120V output) Input signal 0~7V RMS(± 10Vpek) Voltage Accuracy 0.1%(5V-120V) Voltage Typical Accuracy < 0.05% Differential input impedance 20k ohm Gain 20V/V Chassis 4U 19 inches
