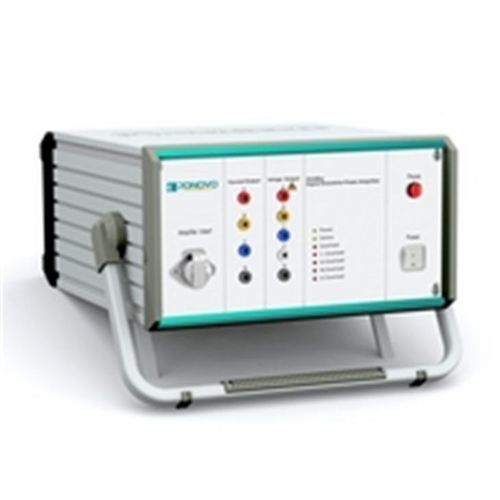

Power amplifier PA30Bip-H

differentiallinearportable

PA30Bip-H portable power amplifier is designed with linear amplifier principle. It is very light portable solution with three channels of current output and four channels of voltage output. Each current output channel is with 30A RMS. Each voltage output channel is with 250V RMS. It is with high frequency range upto DC 5kHz ±1dB and high accuracy of time-delay and step response. It could be used for plenty of simulation application, HIL or PHIL in Power System. Input signal 0~5V RMS(± 7.07/16Vpek) Current Accuracy 0.2%(0.5A-30A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 6A/V Harmonic Distortion Ratio ≤0.2% Linearity ≤0.2% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Voltage 4×0 ~ 250V RMS Max. Output power 75VA(120V output) Input signal 0~5V RMS(± 7.07/16Vpek) Voltage Accuracy 0.2%(5V-120V) Voltage Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 50V/V Chassis 3U
