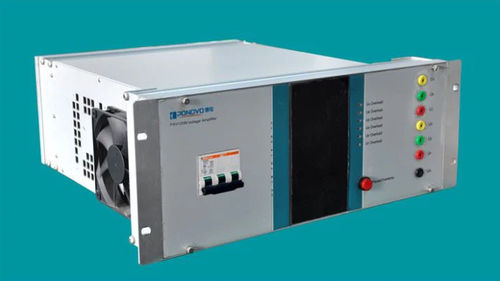

Power amplifier PAV120Bi

voltagedifferentialDC

PAV120Bi is specially designed for R&D of power system simulation. It is adapt to various capacitive and inductive load. It is with 6 channels voltage outputs, each channel with 120V/60VA maximum output. It is with high frequency range upto DC 5kHz ±1dB, could be used to consist of complicated HIL and PHIL simulation application together with other amplifier models, equipment. Voltage output 6 X 0~120 V RMS Max. output power >60VA(120V output) Input signal 0 ~ 7 V RMS Voltage accuracy < 0.1%(5V-120V) Voltage typical accuracy <0.05% Differential input impedance 20k ohm Gain 20 V/V Harmonic distortion ratio <0.1% Linearity <0.1% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Power supply 3 phase 380V AC Chassis 4U 19 inches
