Load simulator PAC60Ci

PHIL Grid

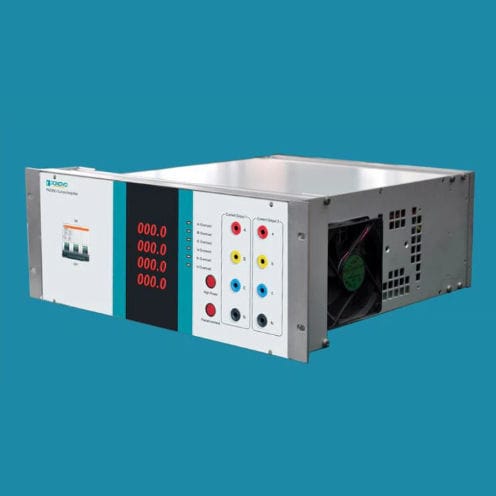

PAC60Ci is the six-phase real time simulation amplifier, with maximum RMS phase current of 30A and maximum output power of 450VA. This current amplifier is possessed of high accuracy and fast liner response. PAC60Ci is specially designed for R&D of power system simulation. It solves the problems of high power of linear power amplifier and accuracy of high current output. It is adapted to various capacitive and inductive load. The HIL power amplifier can be installed in the cabinet to work together with other amplifier models and equipment to finalize different simulation applications. Input signal 0~7V RMS(± 10Vpek) Current Accuracy 0.2%(0.5A-30A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 4A/V Harmonic Distortion Ratio ≤0.2% Linearity ≤0.2% Phase accuracy 0.2° Step response < 20us Input/output delay < 20us Power supply 3 phase 380V AC 50/60 Hz Chassis 4U 19 inches
