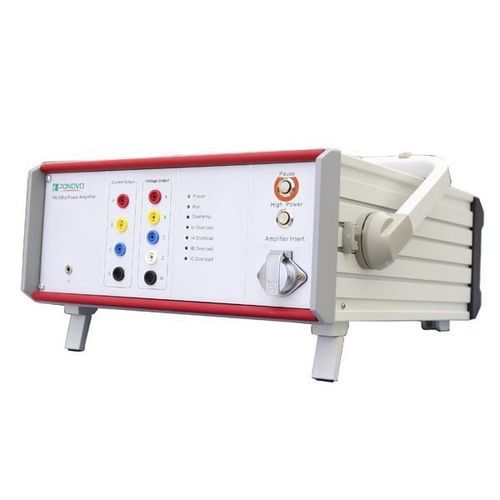

Power amplifier PA30Bip

differentiallinearprecision

PA30Bip portable power amplifier is designed with linear amplifier principle. It is very light portable solution with three channels of current output and four channels of voltage output. Each current output channel is with 30A RMS, 210VA. Each voltage output channel is with 120V RMS, 60VA. It is with high frequency range upto DC 5kHz ±1dB and high accuracy of time-delay and step response, only 20us. It could be used for plenty of simulation application, HIL or PHIL in Power System. Input signal 0~5V RMS(± 7.07/16Vpek) Current Accuracy 0.2%(0.5A-30A) Current Typical Accuracy < 0.1% Differential input impedance 20k ohm Gain 6A/V Harmonic Distortion Ratio ≤0.2% Linearity ≤0.2% Phase accuracy 0.2° Frequency range DC-5kHz±1dB Step response < 20us Input/output delay < 20us Voltage 4×0 ~ 120V RMS Max. Output power 60VA(120V output) Input signal 0~5V RMS(± 7.07/16Vpek) Voltage Accuracy 0.1%(5V-120V) Voltage Typical Accuracy < 0.05% Differential input impedance 20k ohm Gain 25V/V Power supply Single phase 110 or 220V AC 50/60 Hz Chassis 3U
