Load simulator PAV250Bi

PHIL Grid

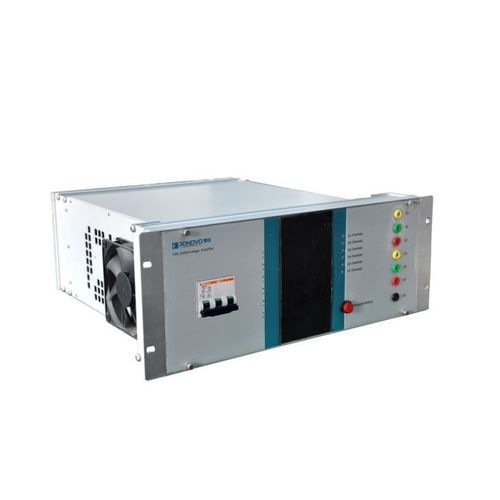

PAV250Bi is one of the conventional voltage power amplifier model, which is specially designed for R&D of power system simulation. It is adapted to various capacitive and inductive load. There are 6-phase voltage outputs with 2 options, 250V or 300V maximum output. It has very high time-delay accuracy, only 80us and high power output capability. It could be installed in 19inch cabinet together with other panel-mounted type amplifier to compose comprehensive simulation system. Input signal 0 ~ 7 V RMS Voltage typical accuracy <0.1% Differential input impedance 20k ohm Gain 36V/V Harmonic distortion ratio <0.1% Linearity <0.2% Phase accuracy 0.2° Step response < 80us Input/output delay < 80us Chassis 4U 19 inches
