Power cable GP 400 SC

salt water resistantoil-resistantweather-resistant

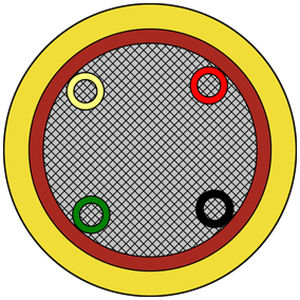

Product Description: Supply cable - SingleCore - PUR Marking Example: SAB BRÖCKSKES · D-Viersen · GP 400 SC 1x(70,0mm²+4x1,0mm²) 3400-0053 CE and continuous meter marking Application: For use in flexible applications, e.g. on mobile GPUs, PIT systems and as a connecting cable between sleeve and plug in reeling applications. Outstanding features: - low capacity insulation - abrasion-resistant PUR jacket - cold flexible - halogene free - oil resistant - weather resistant - with wear indicator Construction: - Conductor: tinned copper strands, fine wires acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: control cores: red, black, green, yellow; power supply core: red - Stranding: control cores within the power supply core - Inner sheath: SABIX®, red - Sheath material: PUR - Sheath colour: yellow Technical data: - Nominal voltage: Uo/U 115/200 V - Max. permissible operating voltage: Uo/U 0.6/1 kV - Testing voltage: core/core 4000 V AC 50Hz - Min. bending radius: fixed laying: 4 x d; flexible application: 6 x d - Temperature range: fixed laying: -50/+90°C; flexible application: -40/+90°C; limited time of use: +110°C (7500 h) - Halogen-free: acc. to IEC 60754-1 - Fire performance: sheath material: UL 94 V2 - Oil resistance: very good - acc. to EN 50363-10-2 - Chemical resistance: good against acids, alkalines, solvents, hydraulic liquids, etc - Weather resistance: very good - acc. to HD 605 (VDE 0276-605) - Salt water resistance: very good - acc. to UL 1309 - Hydrolysis and microbial resistance: very good - acc. to EN 50360-10-2 - MUD resistance: very good - acc. to IEC 60092-360 - Ozone resistance: very good - acc. to EN 50396 - Abrasion: acc. to UL 2556-2021 and JIS C3005 - Fuel resistant: petrol, diesel and kerosene (Jet A-1) - Mechanical resistance: characteristics of the outer sheath: high tensile strength, high tear strength, high abrasion resistance, high notch resistance, high shear strength - Absence of harmful substances: acc. to RoHS directive of the European Union Dimensions (examples): - Item no. L34000052: 1 x (50,0 mm² + 4 x 1,0 mm²), min. 16 mm - max. 16,5 mm, 524,0 kg/km, 603 kg/km, 50,0 mm²: 0,393 Ω/km | 1,0 mm²: 20,0 Ω/km - Item no. L34000053: 1 x (70,0 mm² + 4 x 1,0 mm²), max. 17,5 mm, 739,2 kg/km, 792 kg/km, 70,0 mm²: 0,277 Ω/km | 1,0 mm²: 20,0 Ω/km - Item no. L34000059: 1 x (70,0 mm² + 6 x 1,0 mm²), max. 17,9 mm, 729,6 kg/km, 810 kg/km, 70,0 mm²: 0,277 Ω/km | 1,0 mm²: 20,0 Ω/km - Item no. L34000062: 1 x (35,0 mm² + 4 x 1,0 mm²), max. 17,9 mm, 393,6 kg/km, 478 kg/km, 35,0 mm²: 0,565 Ω/km | 1,0 mm²: 20,0 Ω/km Other dimensions and colours are possible on request. Characteristics / Technical Specifications: - Product: GP 400 SC - PUR - Type: Supply cable - SingleCore - PUR - Application: Mobile GPUs, PIT systems, reeling applications - Conductor: Tinned copper strands, fine wires (IEC 60228 class 5) - Insulation: SABIX® - Sheath: PUR, yellow - Voltage: Uo/U 115/200 V (nominal), Uo/U 0.6/1 kV (max. permissible) - Testing voltage: 4000 V AC 50Hz - Temperature range: -50/+90°C (fixed), -40/+90°C (flexible), +110°C (7500 h) - Halogen-free: IEC 60754-1 - Fire performance: UL 94 V2 - Oil, chemical, weather, salt water, hydrolysis, microbial, MUD, ozone, abrasion, fuel resistance: Very good - Mechanical resistance: High tensile, tear, abrasion, notch, shear strength - RoHS compliant
