Halogen-free power cord GP 400 Sy - PUR

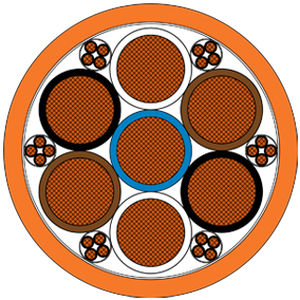

Product Details Supply cable - Symmetrical Application: GP 400 Sy - PUR: The high-quality 400 Hz cable for fixed FEGP installations at airports. As a symmetrically designed 400 Hz power supply solution, the GP 400 Sy – PUR cable was developed specifically for fixed electrical ground power (FEGP) applications, such as between a 400 Hz generator and a cable dispenser at the gate. Its robust PUR outer sheath and SABIX® insulation guarantee a long service life and operational reliability even under extreme conditions: This cable features: - Low capacitance, ideal for high frequencies with minimal contact resistance - Temperature resistance from approx. –50°C to +90°C when installed in a fixed position - Test voltage of up to 4000 V AC between conductors - Compliance with CE and RoHS standards, supplemented by site safety thanks to halogen-free materials In the long term, the GP 400 Sy PUR cable not only reduces maintenance and replacement costs, it also makes a significant contribution to reducing emissions, as APUs or mobile GPUs on the ground are no longer required. Thanks to its robust design, it is the ideal choice for permanently installed power supply systems in airport operations and provides long-term support for modern FEGP infrastructures. Outstanding features: - price optimised - low capacity insulation Construction: Conductor: bare copper strands, fine wires acc. to IEC 60228 class 5 Insulation: SABIX® Colour code 34000452: 1,0 mm²: black with numbers 1 – 24 35,0 mm²: blue, 2 x white, 2 x brown, 2 x black Colour code 34000453: 1,0 mm²: black with numbers 1 – 24 50,0 mm²: blue, black with numbers Stranding: 1,0 mm²: each four cores twisted in layers, wrapped with non-woven tape Elements and 50,0 mm² cores twisted in layers, blue core in the centre, wrapped with non-woven tape Outer Sheath: PUR, orange Technical data: Nominal voltage: 1,0 mm²: Uo/U 115/200 V 50,0 mm²: Uo/U max. 0,6/1 kV Testing voltage: core/core 4000 V AC 50 Hz Min. bending radius: fixed laying: 4 x d flexible application: 6 x d for one single bend: 3 x d Halogen-free: acc. to IEC 60754-1 Temperature range: fixed laying: -50/+90 °C flexible application: -40/+90 °C +110 °C (up to 7500 h) limited time of use Fire performance: sheath material: UL 94 V2 Chemical resistance: good against acids, alkalines, solvents, hydraulic liquids, etc. Hydrolysis and microbial resistance: very good - acc. to EN 50363-10-2 Salt water resistance: very good - acc. to UL 1309 Oil resistance: very good - acc. to EN 50363-10-2 MUD resistance: very good - acc. to IEC 60092-360 Weather resistance: very good - acc. to HD 605 (VDE 0276-605) Ozone resistance: very good - acc. to EN 50396 Abrasion: acc. to UL 2556-2021 and JIS C3005 Fuel resistant: petrol, diesel and kerosene (Jet A-1) Mechanical resistance: characteristics of the PUR outer sheath: - high tensile strength - high tear strength - high abrasion resistance - high notch resistance - high shear strength Absence of harmful substances: acc. to RoHS directive of the European Union Dimensions: item no. L34000452: 7 x (35,0 mm² + 6 x 4 x 1,0 mm²) Approx. outer-ø: min. 40 mm - max. 41,9 mm Copper figure: 2583 kg/km Cable weight ≈: 3219 kg/km Ohmic resistance max. Ω/km: 35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/km item no. L34000453: 7 x (50,0 mm²+ 6 x 4 x 1,0 mm²) Approx. outer-ø: min. 40 mm - max. 41,9 mm Copper figure: 3590 kg/km Cable weight ≈: 4123 kg/km Ohmic resistance max. Ω/km: 50,0mm²: 0,386 Ω/km | 1,0 mm²: 20,0 Ω/km Other dimensions and colours are possible on request. Characteristics / Technical Specifications: - Symmetrical 400 Hz power supply cable for fixed FEGP installations at airports - Robust PUR outer sheath, orange color - SABIX® insulation - Low capacitance, minimal contact resistance - Temperature resistance: -50°C to +90°C (fixed), -40°C to +90°C (flexible), +110°C (up to 7500 h) - Test voltage: up to 4000 V AC - CE and RoHS compliant, halogen-free - High mechanical, chemical, oil, salt water, MUD, weather, ozone, and abrasion resistance - Fuel resistant (petrol, diesel, kerosene) - High tensile, tear, abrasion, notch, and shear strength - Available in different cross-sections and color codes
