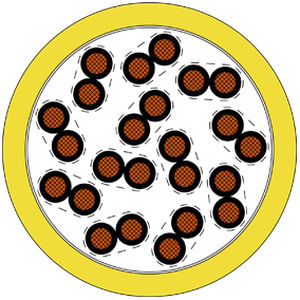

Power cable GP 400 SF S Control

coaxialself-extinguishingflame-retardant

GP 400 SF S Control - 400 Hz Control Cable for Passenger Boarding Bridges and Festoon SystemsThe GP 400 SF S Control is a high-quality 400 Hz control cable, specifically designed for use in festoon systems and drag chains on passenger boarding bridges. Its outstanding flexibility and torsion resistance up to ±60°/m make it ideal for dynamic, moving applications in airport environments. The cable is cold flexible down to -40 °C, halogen-free, and highly resistant to weather, fuels, and UV radiation. The durable SABIX® outer sheath ensures long-term protection against oil, ozone, and mechanical stress. It is also flame-retardant and self-extinguishing in accordance with IEC 60332-3-24 and other international safety standards. With its symmetrical structure and high visibility in yellow, the GP 400 SF S Control is easy to install and safe to operate - even in tight bending spaces. This makes it an ideal choice for long-term use in exposed, high-mobility airport applications.Low capacity insulationCold flexibleHalogen freeTorsion resistantGood ozone, sunlight and weather resistanceGood oil and fuel resistanceNo flame propagationFlame retardant and self-extinguishingGood acid and alkalines resistanceConductorBare copper strands, fine wires acc. to IEC 60228 class 5InsulationSABIX®Colour codeBlack with numbers 1 - 24StrandingCores twisted to pairs, pairs stranded in layers, wrapped with non-woven tape. All elements optimized stranded in layers, wrapped with overlapping non-woven tape.Outer SheathSABIX®, yellowNominal voltageUo/U 0.6/1 kVTesting voltageCore/core 4000 V AC 50 HzMin. bending radiusFixed laying: 4 x dFlexible application: 6 x d for repeated winding actionGuided on pulleys: 7.5 x dContinuously flexible: 12 x dTorsion angle± 60°/1 mTemperature rangeFixed laying: -50/+90 °CFlexible application: -40/+90 °CFire performanceNo flame propagation acc. to IEC 60332-3-24, VDE 0482-332-3-24 resp. IEC 60332-3-25, VDE 0482-332-3-25, EN 50305, VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2, VDE 0482-332-1-2. Flame retardant acc. to ISO 6722 (UN/ECE R118)Halogen-freeAcc. to EN 50306-1, EN 50264-1. Development of HCl is < 0.5% acc. to IEC 60754-1. pH-value is > 4.3 acc. to IEC 60754-2. Conductivity is < 10.0 μS/mm acc. to IEC 60754-2. Fluoric content < 0.1% acc. to IEC 60684-2Smoke densityAcc. to IEC 61034, VDE 0482-1034ToxicityAcc. to EN 50305, VDE 0260-305Oil and fuel resistanceAcc. to EN 50264-1, VDE 0260-264-1FlexibilityVery goodFree-hanging length for festoon application50 mAbsence of harmful substancesAcc. to RoHS directive of the European UnionItem no.No. of cores x cross sectionApprox. outer-øCopper figureCable weight ≈Ohmic resistance max. Ω/kmL3400025212 x 2 x 1.5 mm²ca. 20.7 mm - max. 22.0 mm346 kg/km529 kg/km1.5 mm²: 13.3 Ω/kmOther dimensions and colours are possible on request.Marking example: SAB BRÖCKSKES · D-Viersen · GP 400 SF S Control 12x2x1,5mm² CE and continuous meter markingNorms/Approvals: CE, RoHSTechnical Specifications / FeaturesConductor: Bare copper strands, fine wires acc. to IEC 60228 class 5Insulation: SABIX®Colour code: Black with numbers 1 - 24Stranding: Cores twisted to pairs, pairs stranded in layers, wrapped with non-woven tape. All elements optimized stranded in layers, wrapped with overlapping non-woven tape.Outer Sheath: SABIX®, yellowNominal voltage: Uo/U 0.6/1 kVTesting voltage: Core/core 4000 V AC 50 HzMin. bending radius: Fixed laying: 4 x d; Flexible application: 6 x d for repeated winding action; Guided on pulleys: 7.5 x d; Continuously flexible: 12 x dTorsion angle: ± 60°/1 mTemperature range: Fixed laying: -50/+90 °C; Flexible application: -40/+90 °CFire performance: No flame propagation acc. to IEC 60332-3-24, VDE 0482-332-3-24 resp. IEC 60332-3-25, VDE 0482-332-3-25, EN 50305, VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2, VDE 0482-332-1-2. Flame retardant acc. to ISO 6722 (UN/ECE R118)Halogen-free: Acc. to EN 50306-1, EN 50264-1. Development of HCl is < 0.5% acc. to IEC 60754-1. pH-value is > 4.3 acc. to IEC 60754-2. Conductivity is < 10.0 μS/mm acc. to IEC 60754-2. Fluoric content < 0.1% acc. to IEC 60684-2Smoke density: Acc. to IEC 61034, VDE 0482-1034Toxicity: Acc. to EN 50305, VDE 0260-305Oil and fuel resistance: Acc. to EN 50264-1, VDE 0260-264-1Flexibility: Very goodFree-hanging length for festoon application: 50 mAbsence of harmful substances: Acc. to RoHS directive of the European UnionItem no.: L34000252No. of cores x cross section: 12 x 2 x 1.5 mm²Approx. outer-ø: ca. 20.7 mm - max. 22.0 mmCopper figure: 346 kg/kmCable weight ≈: 529 kg/kmOhmic resistance max. Ω/km: 1.5 mm²: 13.3 Ω/km
