Power cable GP 28V DC SF

copperredblack

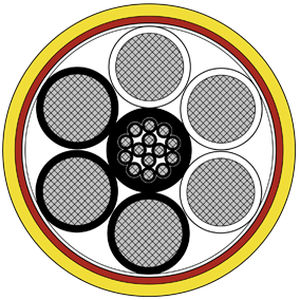

Product Description: Supply cable - 28 V DC SymmetricalFlex Marking example: SAB BRÖCKSKES · D-Viersen · GP 28V DC SF 6x40,0mm²+14x1,0mm² 3400-0300 CE and continuous meter marking Application: - For flexible use on GPUs. Outstanding features: - Low capacity insulation - Very flexible and smooth handling - Very good installation in narrowest spaces - Good resistance - Low wear - With wear indicator Additional information: - Alternative construction for 2 x (120,0 mm² + 4 x 1,0 mm²) or 4 x (70,0 mm² + 4 x 1,0 mm²) as all-in-one cable solution. Construction: - Conductor: Tinned copper strands, fine wires acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: 1,0 mm²: black cores with numbers 1 - 14, 40,0 mm²: black cores with numbers 1 – 3, white cores with numbers 1 - 3 - Stranding: 1,0 mm²: cores optimized stranded in layers - Inner sheath: Special polymer, black - Verseilung: Core 40,0 mm² optimized stranded in layers, element (14 x 1,0 mm²) in the centre, wrapped with overlapping non-woven tape - Inner sheath: Special polymer, red - Outer sheath: Special polymer, yellow Technical Data: - Nominal voltage: Uo/U 28 V DC - Testing voltage: core/core 600 V AC/DC 50 Hz - Min. bending radius: fixed laying: 4 x d, flexible application: 6 x d - Temperature range: fixed laying: -40/+70 °C, flexible application: -30/+70 °C - Fire performance: acc. to IEC 60332-1-2 - Chemical resistance: Good against acids, alkalines, solvents, hydraulic liquids, etc. - Hydrolysis and microbial resistance: Good - Salt water resistance: Good - Oil resistance: Good - acc. to EN 50290-2-22 - Weather resistance: Good - Ozone resistance: Good - Abrasion: acc. to UL 2556-2021 and JIS C3005 - Fuel resistant: Petrol, diesel and kerosene (Jet A-1) - Mechanical resistance: Characteristics of the outer sheath: high tensile strength, high tear strength, high abrasion resistance, high notch resistance, high shear strength - Absence of harmful substances: acc. to RoHS directive of the European Union Dimensions: - Item no.: L34000300 - No. of cores x cross section: 6 x 40,0 mm² + 14 x 1,0 mm² - Outer-ø: ca. 22,2 mm - max. 23,0 mm - Copper figure: 2438 kg/km - Cable weight ≈: 3112 kg/km - Ohmic resistance max. Ω/km: 40,0 mm²: 0,50 Ω/km | 1,0 mm²: 20,0 Ω/km Other dimensions and colours are possible on request. CE and RoHS compliant Characteristics / Technical Specifications: - Model: GP 28V DC SF - Nominal voltage: 28 V DC - Testing voltage: 600 V AC/DC 50 Hz - Temperature range: -40/+70 °C (fixed), -30/+70 °C (flexible) - Conductor: Tinned copper, fine wires, IEC 60228 class 5 - Insulation: SABIX® - Sheath: Special polymer (black, red, yellow) - Oil, chemical, weather, ozone, salt water, hydrolysis, microbial, and fuel resistant - High mechanical resistance (tensile, tear, abrasion, notch, shear) - Fire performance: IEC 60332-1-2 - RoHS compliant - Dimensions: 6 x 40,0 mm² + 14 x 1,0 mm²; Outer diameter: ca. 22,2 mm - max. 23,0 mm - Weight: 3112 kg/km - Ohmic resistance: 40,0 mm²: 0,50 Ω/km | 1,0 mm²: 20,0 Ω/km
