Power cable GP 400 TF DR

coaxialweather-resistantoil-resistant

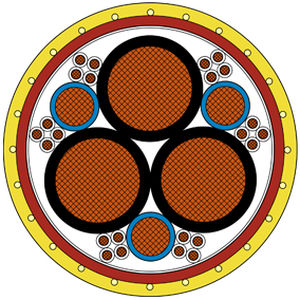

Product DetailsApplication:Cable for use on motorised cable reels, from a core diameter of min. 600 mm or in cable carrier (crocodile).Outstanding features:low capacity insulationabrasion-resistant PUR jacketcold flexiblehalogene freeoil resistantweather resistantwith wear indicatorAdditional information:Current carrying capacityWith reference to LV112-3 and based on an application-related current-time profile and the following operating conditions:ambient temperatures up to max. 30°Ctwo phases of the same colour connected to one conductorother cores (12mm² bl and 1mm²) unloadedlaying individually on or on surfaces260 A for max. 2 h286 A for max. 10 min.325 A for max. 5 min.364 A for max. 10 s520 A for max. 2 sConstructionConductorbare copper strands, fine wires acc. to IEC 60228 class 5InsulationSABIX®Colour code1,0 mm²: white cores with numbers 1-2412,0 mm²: 3 x blue70,0 mm²: black cores with numbers 1-3Verseilung1,0 mm²: cores twisted as quad, wrapped with overlapping non-woven tapeall elements optimized stranded in layers, wrapped with overlapping non-woven tapeInnenmantelPUR, redStützgeflechtaramidAußenmantelPUR, yellowTechnical DataNominal voltageUo/U 115/200 VMax. permissible operating voltageUo/U 0.6/1 kVTesting voltagecore/core 4000 V AC 50 HzMin. bending radiusfixed laying: 4 x dflexible application: 7.5 x d for repeated winding actionguided on pulleys: 10 x ddrum: min. 600 mm inner diameterMin. tensile strength4050 N (15 N/mm²)Halogen-freeacc. to IEC 60754-1Temperature rangefixed laying: -40/+90 °Cflexible application: -30/+90 °CFire performancesheath material: UL 94 V2Oil resistancevery good - acc. to EN 50363-10-2Chemical resistancegood against acids, alkalines, solvents, hydraulic liquids, etc.Weather resistancevery good - acc. to HD 605 (VDE 0276-605)Ozone resistancevery good - acc. to EN 50396Salt water resistancevery good - acc. to UL 1309MUD resistancevery good - acc. to IEC 60092-360Hydrolysis and microbial resistancevery good - acc. to EN 50363-10-2Mechanical resistancecharacteristics of the PUR outer sheath:- very high tensile strength- very high tear strength- very high abrasion resistance- very high notch resistance- very high shear strengthAbrasionacc. to UL 2556-2021 and JIS C3005Fuel resistantpetrol, diesel and kerosene (Jet A-1)Absence of harmful substancesaccording to RoHS Directive of the European UnionDimensionsitem no.No. of cores x cross sectionOuter-øCopper figureCable weight ≈Ohmic resistance max. Ω/kmL340002033 x (70,0 mm² + 3 x 12,0 mm² + 6 x 4 x 1,0 mm²)ca. 39,0 mm - max. 40,0 mm2592 kg/km3112 kg/km70,0 mm²: 0,277 Ω/km | 12,0 mm²: 1,63 Ω/km | 1,0 mm²: 19,5 Ω/kmL340002043 x (70,0 mm² + 3 x 16,0 mm² + 6 x 4 x 1,0 mm²)ca. 39,8 mm - max. 40,0 mm2707 kg/km3221 kg/km70,0 mm²: 0,277 Ω/km | 12,0 mm²: 1,21 Ω/km | 1,0 mm²: 19,5 Ω/kmOther dimensions and colours are possible on request.Norms and Approvals:CERoHSCharacteristics / Technical SpecificationsConductor: bare copper strands, fine wires acc. to IEC 60228 class 5Insulation: SABIX®Colour code: 1,0 mm²: white cores with numbers 1-24; 12,0 mm²: 3 x blue; 70,0 mm²: black cores with numbers 1-3Verseilung: 1,0 mm²: cores twisted as quad, wrapped with overlapping non-woven tape; all elements optimized stranded in layers, wrapped with overlapping non-woven tapeInnenmantel: PUR, redStützgeflecht: aramidAußenmantel: PUR, yellowNominal voltage: Uo/U 115/200 VMax. permissible operating voltage: Uo/U 0.6/1 kVTesting voltage: core/core 4000 V AC 50 HzMin. bending radius: fixed laying: 4 x d; flexible application: 7.5 x d for repeated winding action; guided on pulleys: 10 x d; drum: min. 600 mm inner diameterMin. tensile strength: 4050 N (15 N/mm²)Halogen-free: acc. to IEC 60754-1Temperature range: fixed laying: -40/+90 °C; flexible application: -30/+90 °CFire performance: sheath material: UL 94 V2Oil resistance: very good - acc. to EN 50363-10-2Chemical resistance: good against acids, alkalines, solvents, hydraulic liquids, etc.Weather resistance: very good - acc. to HD 605 (VDE 0276-605)Ozone resistance: very good - acc. to EN 50396Salt water resistance: very good - acc. to UL 1309MUD resistance: very good - acc. to IEC 60092-360Hydrolysis and microbial resistance: very good - acc. to EN 50363-10-2Mechanical resistance: characteristics of the PUR outer sheath: very high tensile strength, very high tear strength, very high abrasion resistance, very high notch resistance, very high shear strengthAbrasion: acc. to UL 2556-2021 and JIS C3005Fuel resistant: petrol, diesel and kerosene (Jet A-1)Absence of harmful substances: according to RoHS Directive of the European Union
