Power cable GP 400 SF

hydrolysis-resistantchemical-resistantsalt water resistant

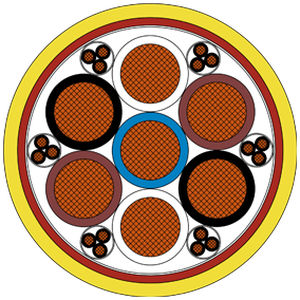

Product Name: GP 400 SF Commercial Name: Supply cable - SymmetricalFlex Application: - For flexible use on mobile GPUs, in PIT systems, on frequency converters and as a flexible extension for operating lengths over 25 metres. Outstanding features: - Low capacity insulation - Very flexible and smooth handling - Very good installation in narrowest spaces - Good resistance - Low wear - With wear indicator Current carrying capacity: - With reference to LV112-3 and based on an application-related current-time profile and the following operating conditions: - Ambient temperatures up to max. 52°C - Two phases of the same colour connected to one conductor - Other cores (35mm² bl and 1mm²) unloaded - Laying individually on or on surfaces - 286 A for max. 10 min. - 325 A for max. 5 min. - 364 A for max. 10 s - 520 A for max. 2 s Construction: - Conductor: Bare copper strands, fine wires acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: 1,0 mm²: black with numbers; 25,0 resp. 35,0 mm²: blue, 2 x (white, brown, black) - Stranding: 1,0 mm²: cores twisted to triples, wrapped with non-woven tape. All elements optimized stranded in layers, wrapped with non-woven tape - Inner sheath: Special polymer, red - Outer sheath: Special polymer, yellow Technical data: - Nominal voltage: 1,0 mm²: Uo/U max. 115/200 V; 25,0 resp. 35,0 mm²: Uo/U 0,6/1 kV - Testing voltage: core/core 4000 V AC 50 Hz - Min. bending radius: Fixed laying: 4 x d; Flexible application: 6 x d; For one single bend: 3 x d - Temperature range: Fixed laying: -40/+70 °C; Flexible application: -30/+70 °C - Fire performance: Acc. to IEC 60332-1-2 - Oil resistance: Good - acc. to EN 50290-2-22 - Chemical resistance: Good against acids, alkalines, solvents, hydraulic liquids, etc. - Weather resistance: Good - Salt water resistance: Good - Hydrolysis and microbial resistance: Good - Ozone resistance: Good - Abrasion: Acc. to UL 2556-2021 and JIS C3005 - Fuel resistant: Petrol, diesel and kerosene (Jet A-1) - Mechanical resistance: Characteristics of the outer sheath: Good tensile strength, Good abrasion resistance, Good notch resistance - Absence of harmful substances: Acc. to RoHS directive of the European Union Dimensions: - Item no.: L34000100, No. of cores x cross section: 7 x 25,0 mm² + 6 x 3 x 1,0 mm², Approx. outer-ø: min. 38,0 mm - max. 39,9 mm, Copper figure: 1853 kg/km, Cable weight ≈: 2757 kg/km, Ohmic resistance max. Ω/km: 25,0 mm²: 0,78 Ω/km | 1,0 mm²: 19,5 Ω/km - Item no.: L34000101, No. of cores x cross section: 7 x 35,0 mm² + 6 x 3 x 1,0 mm², Approx. outer-ø: min. 42,0 mm - max. 44,0 mm, Copper figure: 2525 kg/km, Cable weight ≈: 3235 kg/km, Ohmic resistance max. Ω/km: 35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/km - Item no.: L34000103, No. of cores x cross section: 7 x 35,0 mm² + 6 x 4 x 1,0 mm², Approx. outer-ø: min. 42,0 mm - max. 44,0 mm, Copper figure: 2583 kg/km, Cable weight ≈: 3320 kg/km, Ohmic resistance max. Ω/km: 35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/km - Item no.: L34000102, No. of cores x cross section: 7 x 25,0 mm² + 6 x 4 x 1,0 mm², Approx. outer-ø: min. 40,0 mm - max. 41,9 mm, Copper figure: 1910 kg/km, Cable weight ≈: 2820 kg/km, Ohmic resistance max. Ω/km: 25,0 mm²: 0,78 Ω/km | 1,0 mm²: 19,5 Ω/km Other dimensions and colours are possible on request. Characteristics / Technical Specifications: - Product: GP 400 SF - Type: Supply cable - SymmetricalFlex - Application: Mobile GPUs, PIT systems, frequency converters, flexible extension >25m - Outstanding features: Low capacity insulation, flexible, smooth handling, good resistance, low wear, wear indicator - Current carrying capacity: 286A (10min), 325A (5min), 364A (10s), 520A (2s) - Construction: Bare copper strands, SABIX® insulation, special polymer sheaths - Voltage: 1,0 mm²: 115/200V, 25/35 mm²: 0,6/1kV - Testing voltage: 4000V AC 50Hz - Temperature: -40/+70°C (fixed), -30/+70°C (flexible) - Fire, oil, chemical, weather, salt water, hydrolysis, microbial, ozone resistance: Good - Fuel resistance: Petrol, diesel, kerosene - Mechanical: Good tensile, abrasion, notch resistance - RoHS compliant
