Power cable GP 28V DC SC

weather-resistantoil-resistantabrasion-resistant

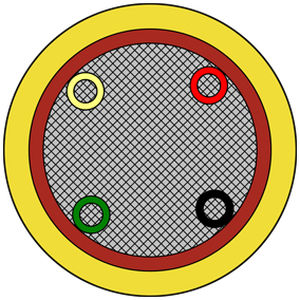

Product Details - Application: For use in flexible applications, e.g. on mobile GPUs. Outstanding features: - Low capacity insulation - Abrasion-resistant PUR jacket - Control cores symmetrically arranged - Cold flexible - Halogen free - Oil resistant - Weather resistant - With wear indicator Current carrying capacity: - According to VDE 0298-4, up to +50°C: 344 A Construction - Conductor: Tinned copper strands, fine wires, acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: 1.0 mm²: control cores: red, black, green, yellow - Ø: nom. 1.8 ± 0.2mm - 120.0 mm²: power supply core: red - Stranding: Control cores within the power supply core - Inner sheath: SABIX®, red - Outer sheath: PUR, yellow Technical Data - Nominal voltage: Uo/U 28V DC - Testing voltage: core/core 600 V 50 Hz - Min. bending radius: Fixed laying: 4 x d, Flexible application: 6 x d - Halogen-free: According to IEC 60754-1 - Temperature range: Fixed laying: -50/+90 °C, Flexible application: -40/+90 °C, Limited time of use: +110 °C (7500 h) - Fire performance: Sheath material: UL 94 V2 - Chemical resistance: Good against acids, alkalines, solvents, hydraulic liquids, etc. - Hydrolysis and microbial resistance: Very good - acc. to EN 50363-10-2 - Salt water resistance: Very good - acc. to UL 1309 - Oil resistance: Very good - acc. to EN 50363-10-2 - MUD resistance: Very good - acc. to IEC 60092-360 - Weather resistance: Very good - acc. to HD 605 (VDE 0276-605) - Ozone resistance: Very good - acc. to EN 50396 - Abrasion: Acc. to UL 2556-2021 and JIS C3005 - Fuel resistant: Petrol, diesel and kerosene (Jet A-1) - Mechanical resistance: Characteristics of the outer sheath: - High tensile strength - High tear strength - High abrasion resistance - High notch resistance - High shear strength - Absence of harmful substances: According to RoHS Directive of the European Union Reference values of current carrying capacity from derating curve - For 20°C ambient temperature, taken from 80% curve: 500 A - For 20°C ambient temperature, taken from 100% curve: 600 A - Precondition: Laying separately free in air Dimensions - Item no.: L34001621 - No. of cores x cross section: 1 x (120.0 + 4 x 1.0 mm²) - Approx. outer-ø: ca. 22.0 mm - max. 23.0 mm - Copper figure: 1296 kg/km - Cable weight ≈: 1339 kg/km - Ohmic resistance max. Ω/km: 120.0 mm²: 0.164 Ω/km | 1.0 mm²: 20.0 Ω/km Other dimensions and colours are possible on request. Marking example: SAB BRÖCKSKES · D-Viersen · GP 28V DC SC(120,0mm²+4x1,0mm²) 3400-0350 CE and continuous meter marking Norms and Approvals: CE, RoHS Characteristics / Technical Specifications: - Application: Flexible use, e.g. on mobile GPUs - Outstanding features: Low capacity insulation, abrasion-resistant PUR jacket, control cores symmetrically arranged, cold flexible, halogen free, oil resistant, weather resistant, wear indicator - Current carrying capacity: up to 344 A at +50°C (VDE 0298-4) - Conductor: Tinned copper strands, fine wires, IEC 60228 class 5 - Insulation: SABIX® - Colour code: 1.0 mm²: red, black, green, yellow; 120.0 mm²: red - Stranding: Control cores within the power supply core - Inner sheath: SABIX®, red - Outer sheath: PUR, yellow - Nominal voltage: 28V DC - Testing voltage: 600 V 50 Hz - Min. bending radius: 4 x d (fixed), 6 x d (flexible) - Temperature range: -50/+90°C (fixed), -40/+90°C (flexible), +110°C (7500 h) - Fire performance: UL 94 V2 - Chemical resistance: Good against acids, alkalines, solvents, hydraulic liquids - Hydrolysis/microbial resistance: Very good (EN 50363-10-2) - Salt water resistance: Very good (UL 1309) - Oil resistance: Very good (EN 50363-10-2) - MUD resistance: Very good (IEC 60092-360) - Weather resistance: Very good (HD 605) - Ozone resistance: Very good (EN 50396) - Abrasion: UL 2556-2021, JIS C3005 - Fuel resistant: Petrol, diesel, kerosene (Jet A-1) - Mechanical resistance: High tensile, tear, abrasion, notch, shear strength - Absence of harmful substances: RoHS Directive - Reference current carrying capacity: 500 A (80% curve), 600 A (100% curve) at 20°C - Dimensions: 1 x (120.0 + 4 x 1.0 mm²), outer-ø ca. 22.0-23.0 mm, copper 1296 kg/km, cable weight 1339 kg/km, ohmic resistance 0.164 Ω/km (120.0 mm²), 20.0 Ω/km (1.0 mm²)
