Transportation drag chain GP 400 SF S Power

towing

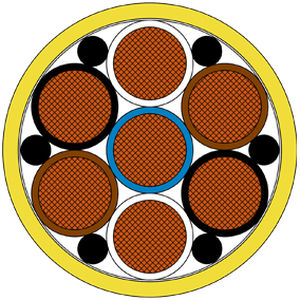

Product Details Application: Supply cable for use in drag chains and as a festoon cable on passenger boarding bridges. Outstanding features: - Low capacity insulation - Cold flexible - Halogen free - Torsion resistant - Good ozone, sunlight and weather resistance - Good oil and fuel resistance - No flame propagation - Flame retardant and self-extinguishing - Good acid and alkalines resistance Construction: - Conductor: Bare copper strands, fine wires acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: blue, white, white, brown, brown, black, black - Stranding: Cores twisted in layers, blue core in the centre, filler in interstices, wrapped with non-woven tape; all elements optimized stranded in layers, wrapped with overlapping non-woven tape - Outer Sheath: SABIX®, yellow Technical Data: - Nominal voltage: Uo/U 0.6/1 kV - Testing voltage: core/core 4000 V AC 50 Hz - Min. bending radius: fixed laying: 4 x d; flexible application: 6 x d; continuously flexible: 12 x d - Torsion angle: ± 60°/1 m - Temperature range: fixed laying: -50/+90 °C; flexible application: -40/+90 °C - Fire performance: No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 und EN 50305 + VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2. Flame retardant acc. to ISO 6722 (UN/ECE R118) - Halogen-free: Acc. to EN 50306-1 + EN 50264-1. Development of HCl is 4.3 acc. to IEC 60754-2. Conductivity is < 10.0 μS/mm acc. to IEC 60754-2. Fluoric content < 0.1% acc. to IEC 60684-2 - Smoke density: Acc. to IEC 61034 + VDE 0482-1034 - Toxicity: Acc. to EN 50305 + VDE 0260-305 - Oil and fuel resistance: Acc. to EN 50264-1 + VDE 0260-264-1 - Flexibility: Very good - Free-hanging length for festoon application: 50 m - Absence of harmful substances: Acc. to RoHS directive of the European Union Dimensions: - Item no.: L34006230 - No. of cores x cross section: 7 x 35.0 mm² - Approx. outer-ø: ca. 34.3 mm - Copper figure: 2352 kg/km - Cable weight ≈: 2888 kg/km - Ohmic resistance max. Ω/km: 35.0 mm²: 0.55 Ω/km Other dimensions and colours are possible on request. Certifications: - CE - RoHS Marking example: SAB BRÖCKSKES ·D-Viersen · GP 400 SF S Power 7x35,0mm² CE and continuous meter marking Characteristics / Technical Specifications: - Application: Drag chain and festoon cable for passenger boarding bridges - Low capacity insulation - Cold flexible - Halogen free - Torsion resistant - Good ozone, sunlight, weather, oil, fuel, acid, and alkaline resistance - No flame propagation, flame retardant, self-extinguishing - Very good flexibility - Nominal voltage: 0.6/1 kV - Testing voltage: 4000 V AC 50 Hz - Temperature range: -50/+90 °C (fixed), -40/+90 °C (flexible) - Free-hanging length: 50 m - RoHS compliant
