Power cable GP 400 Sy - PUR

coaxialrobustcopper

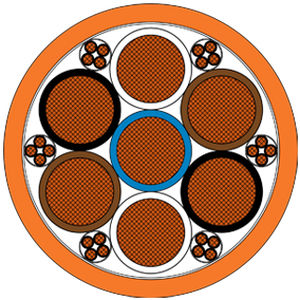

Product DetailsSupply cable - SymmetricalApplicationGP 400 Sy - PUR: The high-quality 400 Hz cable for fixed FEGP installations at airports.As a symmetrically designed 400 Hz power supply solution, the GP 400 Sy – PUR cable was developed specifically for fixed electrical ground power (FEGP) applications, such as between a 400 Hz generator and a cable dispenser at the gate. Its robust PUR outer sheath and SABIX® insulation guarantee a long service life and operational reliability even under extreme conditions:This cable features:Low capacitance, ideal for high frequencies with minimal contact resistanceTemperature resistance from approx. –50°C to +90°C when installed in a fixed positionTest voltage of up to 4000 V AC between conductorsCompliance with CE and RoHS standards, supplemented by site safety thanks to halogen-free materialsIn the long term, the GP 400 Sy PUR cable not only reduces maintenance and replacement costs, it also makes a significant contribution to reducing emissions, as APUs or mobile GPUs on the ground are no longer required. Thanks to its robust design, it is the ideal choice for permanently installed power supply systems in airport operations and provides long-term support for modern FEGP infrastructures.Outstanding featuresprice optimisedlow capacity insulationConstructionConductorbare copper strands, fine wires acc. to IEC 60228 class 5InsulationSABIX®Colour code 340004521,0 mm²: black with numbers 1 – 2435,0 mm²: blue, 2 x white, 2 x brown, 2 x blackColour code 340004531,0 mm²: black with numbers 1 – 2450,0 mm²: blue, black with numbersStranding1,0 mm²: each four cores twisted in layers, wrapped with non-woven tapeElements and 50,0 mm² cores twisted in layers, blue core in the centre, wrapped with non-woven tapeOuter SheathPUR, orangeTechnical dataNominal voltage1,0 mm²: Uo/U 115/200 V50,0 mm²: Uo/U max. 0,6/1 kVTesting voltagecore/core 4000 V AC 50 HzMin. bending radiusfixed laying: 4 x dflexible application: 6 x dfor one single bend: 3 x dHalogen-freeacc. to IEC 60754-1Temperature rangefixed laying: -50/+90 °Cflexible application: -40/+90 °C+110 °C (up to 7500 h) limited time of useFire performancesheath material: UL 94 V2Chemical resistancegood against acids, alkalines, solvents, hydraulic liquids, etc.Hydrolysis and microbial resistancevery good - acc. to EN 50363-10-2Salt water resistancevery good - acc. to UL 1309Oil resistancevery good - acc. to EN 50363-10-2MUD resistancevery good - acc. to IEC 60092-360Weather resistancevery good - acc. to HD 605 (VDE 0276-605)Ozone resistancevery good - acc. to EN 50396Abrasionacc. to UL 2556-2021 and JIS C3005Fuel resistantpetrol, diesel and kerosene (Jet A-1)Mechanical resistancecharacteristics of the PUR outer sheath:- high tensile strength- high tear strength- high abrasion resistance- high notch resistance- high shear strengthAbsence of harmful substancesacc. to RoHS directive of the European UnionDimensionsitem no.No. of cores x cross sectionApprox. outer-øCopper figureCable weight ≈Ohmic resistance max. Ω/kmL340004527 x (35,0 mm² + 6 x 4 x 1,0 mm²)min. 40 mm - max. 41,9 mm2583 kg/km3219 kg/km35,0 mm²: 0,554 Ω/km | 1,0 mm²: 19,5 Ω/kmL340004537 x (50,0 mm²+ 6 x 4 x 1,0 mm²)min. 40 mm - max. 41,9 mm3590 kg/km4123 kg/km50,0mm²: 0,386 Ω/km | 1,0 mm²: 20,0 Ω/kmOther dimensions and colours are possible on request.Norms & ApprovalsCERoHSCharacteristics / Technical SpecificationsSymmetrical 400 Hz power supply cable for fixed FEGP installations at airportsLow capacitance, minimal contact resistanceTemperature resistance: –50°C to +90°C (fixed), –40°C to +90°C (flexible), +110°C (up to 7500 h)Test voltage: up to 4000 V ACHalogen-free, RoHS compliantRobust PUR outer sheath, SABIX® insulationHigh resistance to chemicals, hydrolysis, microbes, salt water, oil, MUD, weather, ozone, abrasion, and fuelsHigh mechanical strength: tensile, tear, abrasion, notch, shearAvailable in different cross-sections and configurations
