Power cable GP 400 Sy - PVC

coaxialrobuststranded

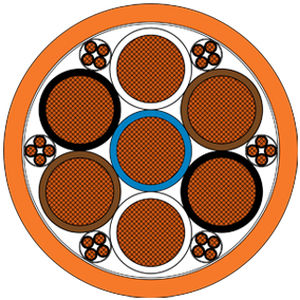

Product Description:Supply cable - SymmetricalGP 400 Sy - PVC: The high-quality 400 Hz cable for fixed electrical ground power installations at airports.As a symmetrically designed 400 Hz power supply solution, the GP 400 Sy - PVC cable was developed specifically for fixed electrical ground power (FEGP) applications, such as between a 400 Hz generator and a cable dispenser at the gate. The PVC outer sheath and SABIX® insulation guarantee a long service life and operational reliability even under extreme conditions:Low capacitance, ideal for high frequencies with minimal contact resistanceTemperature resistance from approx. -30°C to +70°C when installed in a fixed positionTest voltage of up to 4000 V AC between conductorsCompliance with CE and RoHS standards, supplemented by site safety thanks to halogen-free materialsIn the long term, the GP 400 Sy PVC cable not only reduces maintenance and replacement costs, it also makes a significant contribution to reducing emissions, as APUs or mobile GPUs on the ground are no longer required. Thanks to its robust design, it is the ideal choice for permanently installed power supply systems in airport operations and provides long-term support for modern FEGP infrastructures.Outstanding features:price optimisedlow capacity insulationConstruction:Conductorbare copper, fine stranded, acc. to IEC/EN 60228 class 5Insulation1,0 mm²: SABIX®35,0 mm²: PVCColour code1,0 mm²: black cores with consecutive no. 1 - 2435,0 mm²: blue, 2x white, 2x brown, 2x blackStranding1,0 mm²: cores twisted as quads, wrapped with tape,all elements twisted in especially adjusted layering, overlapping wrapped with tapeOuter SheathPVC, orange, similar to RAL 2004Technical Data:Nominal voltage1,0 mm²: Uo/U 115/200 V35,0 mm²: Uo/U max. 0,6/1 kVTesting voltagecore/core 4000 V AC 50 HzMin. bending radiusfor one single bend: 3 x dfixed laying: 4 x dflexible application: 6 x dTemperature rangefixed laying: -30°C/+70 °Cflexible use: +5°C/+70 °CFire performanceacc. to IEC 60332-1-2Max. short circuit temperature+160°C (max. 5s)Water resistancegoodChemical resistancegood against acids, alkalines, solvents, hydraulic liquids, etcOil resistancegood - acc. to EN 50290-2-22Ozone and weather resistancegoodAbsence of harmful substancesacc. to RoHS-Directive 2011/65/EU and Directive (EU) 2015/863 amending Annex II to Directive 2011/65/EUDimensions:item no.No. of cores x cross sectionOuter-øCopper figureCable weight ≈Ohmic resistance at 20°C max.L3400-04027 x 35,0 mm² + 6 x 4 x 1,0 mm²min. 35,5 mm; max. 39,5 mm2582,4 kg/km3164 kg/kmmax. 0,554 Ω/km (35,0mm²); max. 19,5 Ω/km (1,0mm²)Other dimensions and colours are possible on request.Marking example: SAB BRÖCKSKES · D-Viersen · GP 400 Sy 7x35,0mm²+6x4x1,0mm² 3400-0402 CE and continuous meter markingCharacteristics / Technical Specifications:Symmetrical 400 Hz supply cable for fixed electrical ground power at airportsLow capacitance, ideal for high frequenciesTemperature resistance: -30°C to +70°C (fixed), +5°C to +70°C (flexible)Test voltage: up to 4000 V ACCE and RoHS compliant, halogen-free materialsConductor: bare copper, fine stranded, IEC/EN 60228 class 5Insulation: SABIX® (1,0 mm²), PVC (35,0 mm²)Colour code: black cores (1,0 mm²), blue/white/brown/black (35,0 mm²)Stranding: quads, tape wrapped, layeredOuter sheath: PVC, orange (RAL 2004)Nominal voltage: 115/200 V (1,0 mm²), max. 0,6/1 kV (35,0 mm²)Fire performance: IEC 60332-1-2Short circuit temp.: +160°C (max. 5s)Water, chemical, oil, ozone, and weather resistance: goodRoHS compliant
