Power cable GP 28V DC SC

chemical-resistantsalt water resistantoil-resistant

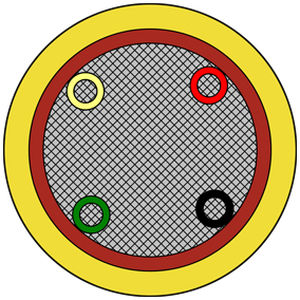

Product Details - Application: For use in flexible applications, e.g. on mobile GPUs. Outstanding features: - Low capacity insulation - Abrasion-resistant PUR jacket - Control cores symmetrically arranged - Cold flexible - Halogen-free - Oil resistant - Weather resistant - With wear indicator Additional information: - Current carrying capacity: acc. to VDE 0298-4, up to +50°C: 344 A Construction - Conductor: tinned copper strands, fine wires, acc. to IEC 60228 class 5 - Insulation: SABIX® - Colour code: 1,0 mm²: control cores: red, black, green, yellow - Ø: nom. 1,8 ± 0,2mm - 120,0 mm²: power supply core: red - Stranding: control cores within the power supply core - Inner sheath: SABIX®, red - Outer sheath: PUR, yellow Technical Data - Nominal voltage: Uo/U 28V DC - Testing voltage: core/core 600 V 50 Hz - Min. bending radius: fixed laying: 4 x d, flexible application: 6 x d - Halogen-free: acc. to IEC 60754-1 - Temperature range: fixed laying: -50/+90 °C, flexible application: -40/+90 °C, limited time of use: +110 °C (7500 h) - Fire performance: sheath material: UL 94 V2 - Chemical resistance: good against acids, alkalines, solvents, hydraulic liquids, etc. - Hydrolysis and microbial resistance: very good - acc. to EN 50363-10-2 - Salt water resistance: very good - acc. to UL 1309 - Oil resistance: very good - acc. to EN 50363-10-2 - MUD resistance: very good - acc. to IEC 60092-360 - Weather resistance: very good - acc. to HD 605 (VDE 0276-605) - Ozone resistance: very good - acc. to EN 50396 - Abrasion: acc. to UL 2556-2021 and JIS C3005 - Fuel resistant: petrol, diesel and kerosene (Jet A-1) - Mechanical resistance: characteristics of the outer sheath: - High tensile strength - High tear strength - High abrasion resistance - High notch resistance - High shear strength - Absence of harmful substances: according to RoHS Directive of the European Union Reference values of current carrying capacity from derating curve - for 20°C ambient temperature, taken from 80% curve: 500 A - for 20°C ambient temperature, taken from 100 % curve: 600 A - precondition: laying separately free in air Dimensions - item no.: L34001621 - No. of cores x cross section: 1 x (120,0 + 4 x 1,0 mm²) - Approx. outer-ø: ca. 22,0 mm - max. 23,0 mm - Copper figure: 1296 kg/km - Cable weight ≈: 1339 kg/km - Ohmic resistance max. Ω/km: 120,0 mm²: 0,164 Ω/km | 1,0 mm²: 20,0 Ω/km Other dimensions and colours are possible on request. Certifications: - CE - RoHS Marking example: - SAB BRÖCKSKES · D-Viersen · GP 28V DC SC(120,0mm²+4x1,0mm²) 3400-0350 CE and continuous meter marking
