Power cable GP 400 SF S Power

flame-retardantoil-resistantweather-resistant

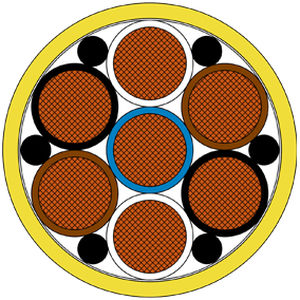

Supply cable for use in drag chains and as a festoon cable on passenger boarding bridges. Product advantages: - Low-capacitance insulation - Cold flexible - Halogen-free - Torsion-resistant - Good ozone, UV, and weather resistance - Good oil and fuel resistance - No fire propagation - Flame-retardant and self-extinguishing - Good acid and alkali resistance Construction: - Conductor: Copper, bare, fine-stranded according to IEC 60228 class 5 - Insulation: SABIX® - Core identification: blue, white, white, brown, brown, black, black - Stranding: Cores stranded in layers, blue core in the center, fillers in the interstices, wrapped with fleece; all elements optimally stranded in layers, wrapped with overlapping fleece - Outer sheath: SABIX®, yellow Technical Data: - Rated voltage: Uo/U 0.6/1 kV - Test voltage: Core/core 4000 V AC 50 Hz - Minimum bending radius: Fixed installation: 4 x d; Freely movable: 6 x d; Continuous flexing: 12 x d - Torsion angle: ± 60°/1 m - Temperature range: Not moved: -50/+90 °C; Moved: -40/+90 °C - Fire behavior: No fire propagation according to IEC 60332-3-24 + VDE 0482-332-3-24 or IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2. Flame-retardant and self-extinguishing according to IEC 60332-1-2 + VDE 0482-332-1-2. Flame resistance according to ISO 6722 (UN/ECE R118) - Halogen-free: According to EN 50306-1 + EN 50264-1. HCl development 4.3 according to IEC 60754-2. Conductivity < 10.0 μS/mm according to IEC 60754-2. Fluorine content < 0.1% according to IEC 60684-2 - Smoke density: According to IEC 61034 + VDE 0482-1034 - Toxicity: According to EN 50305 + VDE 0260-305 - Oil and fuel resistance: According to EN 50264-1 + VDE 0260-264-1 - Flexibility: Very good - Free hanging length for festoon application: 50 m - Free of hazardous substances: According to RoHS Directive of the European Union Dimensions: - Art.-Nr.: L34000250 - Number of cores x cross-section: 7 x 35.0 mm² - Outer Ø approx.: 34.3 mm - Cu weight: 2352 kg/km - Cable weight approx.: 2888 kg/km - DC resistance max. Ω/km: 35.0 mm²: 0.55 Ω/km Other dimensions and colors on request. CE and RoHS compliant
