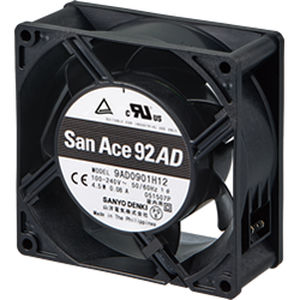

Axial PC fan 9AD0901H1H1coolingDCAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- AC, DC
- Material
- plastic
- Other characteristics
- low-speed
- Air flow
1.5 m³/min
(52.972 ft³/min)
Description
Frame size [mm]
92
Frame thickness [mm]
38
Frame material
Plastic
Rated voltage [V]
100～240
Operating voltage range [V]
90～264
Frequency [Hz]
50/60
Rated current [A]
0.08
Rated input [W]
4.5
Max. static pressure [Pa]
90
Max. static pressure[inchH2O]
0.36
Operating temperature[˚C]
-20～+75
Expected life[h]
60000/60℃ （90000/40℃）
Mass [g]
250
Sensor type
Low-speed sensor
PWM control function
No
Ribbed
No
