Centrifugal electronic fan 9ADTV11P0G001
coolingDCAC

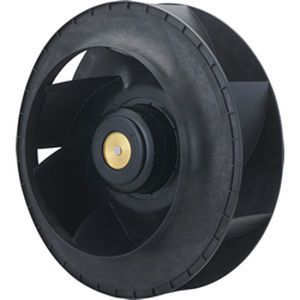

Centrifugal electronic fan - 9ADTV11P0G001 - SANYO DENKI America - cooling / DC / AC
Centrifugal electronic fan - 9ADTV11P0G001 - SANYO DENKI America - cooling / DC / AC
Add to favorites
Compare this product

Characteristics

Configuration
centrifugal
Function
cooling
Supply voltage
DC, AC
Material
aluminum
Air flow

26.5 m³/min
(935.839 ft³/min)

Description

Frame thickness [mm] 99 Operating voltage range [V] 90～132 Frequency [Hz] 50/60 Rated current [A] 2.3 Rated input [W] 140 Rated speed [min-1] 2700 Max. airflow [CFM] 936 Max. static pressure [Pa] 650 Max. static pressure[inchH2O] 2.61 SPL [dB(A 71 Operating temperature[˚C] -25～+60 Expected life[h] 40000/60℃ (70000/40℃) Mass [g] 1920 Sensor type Pulse sensor PWM control function Yes
