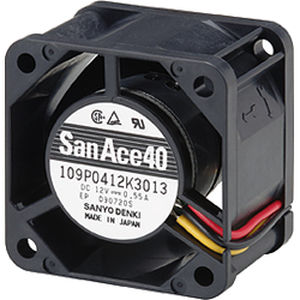

PC fan 109P0412B3013axialcooling12 Vdc
Add to favorites
Compare this product
Characteristics
- Installation
- for PC
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 12 Vdc
- Drive mechanism
- electrically-powered
- Material
- plastic
- Other characteristics
- industrial
- Air flow
0.38 m³/min
(13.42 ft³/min)- Rotational speed
10,300 rpm
(64,717 rad.min-1)- Noise level
40 dB
Description
Frame size [mm]
40
Frame thickness [mm]
28
Frame material
Plastic
Rated voltage [V]
12
Operating voltage range [V]
7～13.8
Rated current [A]
0.28
Rated input [W]
3.36
Max. static pressure [Pa]
143
Max. static pressure[inchH2O]
0.574
Operating temperature[˚C]
-20～+60
Expected life[h]
40000/60℃ （70000/40℃）
Mass [g]
52
Sensor type
Pulse sensor
PWM control function
No
Ribbed
Yes
