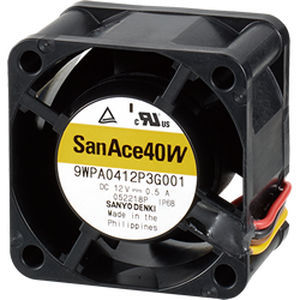

Axial electronic fan 9WPA0412H3001cooling12VDCplastic
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 12VDC
- Material
- plastic
- Air flow
0.52 m³/min
(18.364 ft³/min)
Description
Frame thickness [mm]
28
Operating voltage range [V]
7～13.8
Rated current [A]
0.34
Rated input [W]
4.1
Rated speed [min-1]
18500
Max. airflow [CFM]
18.3
Max. static pressure [Pa]
375
Max. static pressure[inchH2O]
1.51
SPL [dB(A
48
Operating temperature[˚C]
-20～+70
Expected life[h]
40000/60℃ (70000/40℃)
Mass [g]
60
Sensor type
Pulse sensor
IP rating
IP68
PWM control function
No
