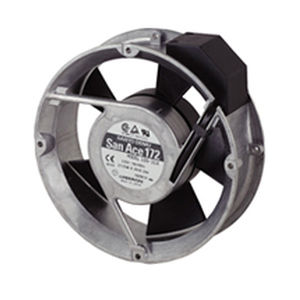

Axial PC fan 109-311coolingACaluminum
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- AC
- Material
- aluminum
- Air flow
5.3 m³/min, 6.4 m³/min
(187.168 ft³/min, 226.014 ft³/min)
Description
Frame thickness [mm]
51
Frame material
Aluminum
Rated voltage [V]
100
Operating voltage range [V]
90～110
Frequency [Hz]
50/60
Locked rotor current [A]
0.65/0.64
Rated current [A]
0.33/0.25
Rated input [W]
27/25
Max. static pressure [Pa]
147/196
Max. static pressure[inchH2O]
0.59/0.787
Operating temperature[˚C]
-30～+60
Expected life[h]
25000/60℃ （56000/40℃）
Mass [g]
1000
PWM control function
No
Ribbed
No
