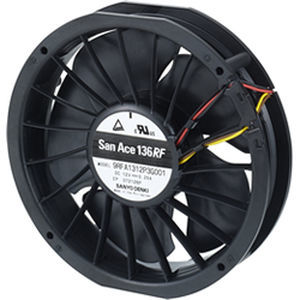

Axial electronic fan 9RFA1312P3G001
cooling12VDCplastic

Axial electronic fan - 9RFA1312P3G001 - SANYO DENKI America - cooling / 12VDC / plastic
Axial electronic fan - 9RFA1312P3G001 - SANYO DENKI America - cooling / 12VDC / plastic
Add to favorites
Compare this product

Characteristics

Configuration
axial
Function
cooling
Supply voltage
12VDC
Material
plastic
Air flow

2.1 m³/min
(74.161 ft³/min)

Description

Frame thickness [mm] 28 Operating voltage range [V] 10.2～13.8 Rated current [A] 0.25 Rated input [W] 3 Rated speed [min-1] 5450 Max. airflow [CFM] 74.2 Max. static pressure [Pa] 285 Max. static pressure[inchH2O] 1.14 SPL [dB(A 49 Operating temperature[˚C] -25～+70 Expected life[h] 40000/60℃ (70000/40℃) Mass [g] 204 Sensor type Pulse sensor PWM control function Yes Ribbed Yes
