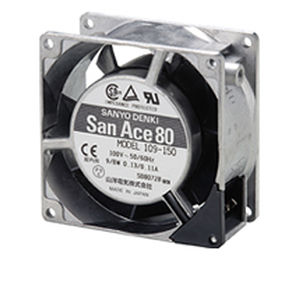

Axial PC fan 109-150 SeriescoolingACaluminum
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- AC
- Material
- aluminum
- Air flow
0.9 m³/min, 1.05 m³/min
(31.783 ft³/min, 37.08 ft³/min)
Description
Frame size [mm]
80
Frame thickness [mm]
38
Frame material
Aluminum
Rated voltage [V]
100
Operating voltage range [V]
90～110
Frequency [Hz]
50/60
Locked rotor current [A]
0.17/0.15
Rated current [A]
0.13/0.11
Rated input [W]
9/8
Max. static pressure [Pa]
31.4/44.1
Max. static pressure[inchH2O]
0.126/0.177
Operating temperature[˚C]
-30～+60
Expected life[h]
25000/60℃ （56000/40℃）
Mass [g]
400
PWM control function
No
Ribbed
No
