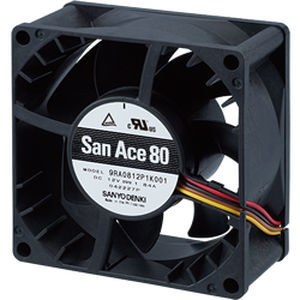

Axial electronic fan 9RA0812G1001cooling12VDCplastic
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 12VDC
- Material
- plastic
- Air flow
2.42 m³/min
(85.461 ft³/min)
Description
Frame thickness [mm]
38
Operating voltage range [V]
7～13.8
Rated current [A]
0.82
Rated input [W]
9.84
Rated speed [min-1]
6750
Max. airflow [CFM]
85.5
Max. static pressure [Pa]
206
Max. static pressure[inchH2O]
0.83
SPL [dB(A
48
Operating temperature[˚C]
-20～+70
Expected life[h]
40000/60℃ (70000/40℃)
Mass [g]
170
Sensor type
Pulse sensor
PWM control function
No
Ribbed
Yes
