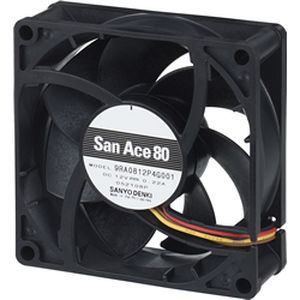

Axial electronic fan 9RA0812G4001cooling12VDCplastic
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- 12VDC
- Material
- plastic
- Air flow
1.4 m³/min
(49.441 ft³/min)
Description
Frame thickness [mm]
25
Operating voltage range [V]
7～13.8
Rated current [A]
0.22
Rated input [W]
2.64
Rated speed [min-1]
5000
Max. airflow [m3/min]
1.4
Max. airflow [CFM]
49.4
Max. static pressure [Pa]
83
Max. static pressure[inchH2O]
0.33
SPL [dB(A
37
Operating temperature[˚C]
-20～+70
Expected life[h]
60000/60℃ (90000/40℃)
Mass [g]
110
Sensor type
Pulse sensor
PWM control function
No
Ribbed
Yes
